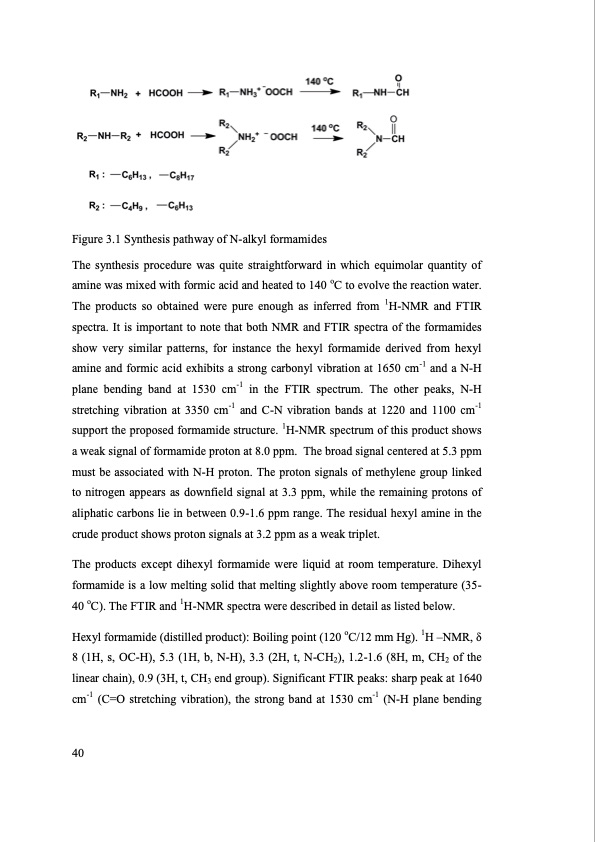

Figure 3.1 Synthesis pathway of N-alkyl formamides The synthesis procedure was quite straightforward in which equimolar quantity of amine was mixed with formic acid and heated to 140 oC to evolve the reaction water. The products so obtained were pure enough as inferred from 1H-NMR and FTIR spectra. It is important to note that both NMR and FTIR spectra of the formamides show very similar patterns, for instance the hexyl formamide derived from hexyl amine and formic acid exhibits a strong carbonyl vibration at 1650 cm-1 and a N-H plane bending band at 1530 cm-1 in the FTIR spectrum. The other peaks, N-H stretching vibration at 3350 cm-1 and C-N vibration bands at 1220 and 1100 cm-1 support the proposed formamide structure. 1H-NMR spectrum of this product shows a weak signal of formamide proton at 8.0 ppm. The broad signal centered at 5.3 ppm must be associated with N-H proton. The proton signals of methylene group linked to nitrogen appears as downfield signal at 3.3 ppm, while the remaining protons of aliphatic carbons lie in between 0.9-1.6 ppm range. The residual hexyl amine in the crude product shows proton signals at 3.2 ppm as a weak triplet. The products except dihexyl formamide were liquid at room temperature. Dihexyl formamide is a low melting solid that melting slightly above room temperature (35- 40 oC). The FTIR and 1H-NMR spectra were described in detail as listed below. Hexyl formamide (distilled product): Boiling point (120 oC/12 mm Hg). 1H –NMR, δ 8 (1H, s, OC-H), 5.3 (1H, b, N-H), 3.3 (2H, t, N-CH2), 1.2-1.6 (8H, m, CH2 of the linear chain), 0.9 (3H, t, CH3 end group). Significant FTIR peaks: sharp peak at 1640 cm-1 (C=O stretching vibration), the strong band at 1530 cm-1 (N-H plane bending 40PDF Image | SEPARATION OF LITHIUM FROM BRINES
