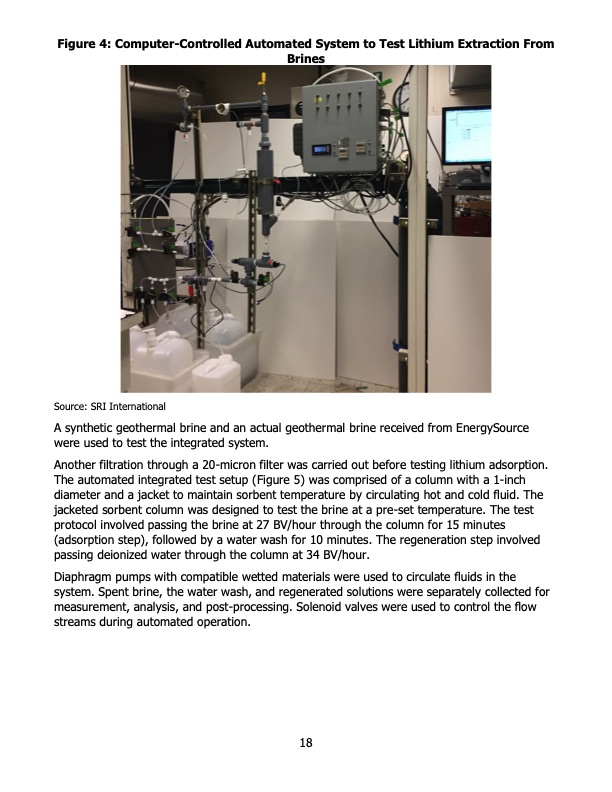

Figure 4: Computer-Controlled Automated System to Test Lithium Extraction From Brines Source: SRI International A synthetic geothermal brine and an actual geothermal brine received from EnergySource were used to test the integrated system. Another filtration through a 20-micron filter was carried out before testing lithium adsorption. The automated integrated test setup (Figure 5) was comprised of a column with a 1-inch diameter and a jacket to maintain sorbent temperature by circulating hot and cold fluid. The jacketed sorbent column was designed to test the brine at a pre-set temperature. The test protocol involved passing the brine at 27 BV/hour through the column for 15 minutes (adsorption step), followed by a water wash for 10 minutes. The regeneration step involved passing deionized water through the column at 34 BV/hour. Diaphragm pumps with compatible wetted materials were used to circulate fluids in the system. Spent brine, the water wash, and regenerated solutions were separately collected for measurement, analysis, and post-processing. Solenoid valves were used to control the flow streams during automated operation. 18PDF Image | Selective Recovery of Lithium from Geothermal Brines
