PDF Publication Title:

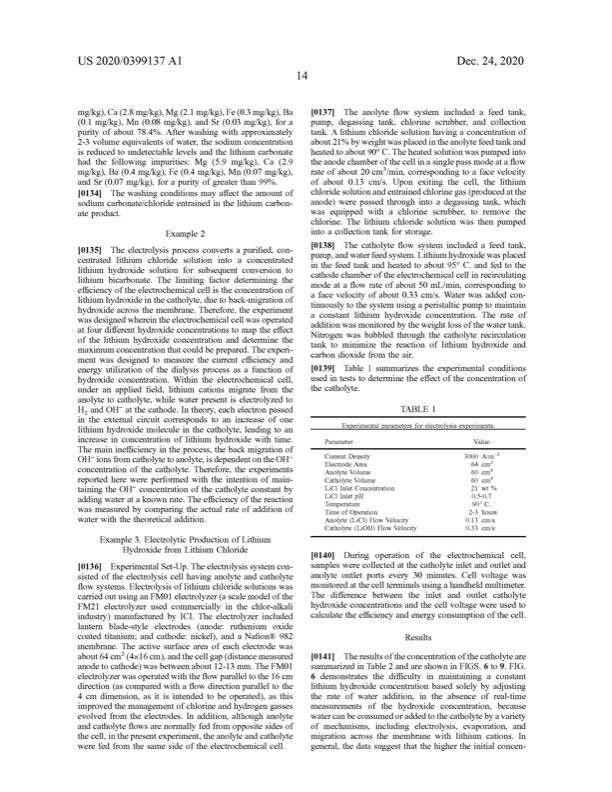

Text from PDF Page: 025
US 2020/0399137A1 Dec.24,2020 mg/kg),Ca(2.8mg/kg),Mg(2.1mg/kg),Fe(0.3mg/kg),Ba (0.1mg/kg),Mn(0.08mg/kg),andSr(0.03mg/kg),fora purityofabout78.4%.Afterwashingwithaproximately 2-3volumeequivalentsofwater,thesodiumconcentration isreducedtoundetectablelevelsandthelithiumcarbonate hadthefolowingimpurities:Mg(5.9mg/kg),Ca(2.9 mg/kg),Ba(0.4mg/kg),Fe(0.4mg/kg),Mn(0.07mg/kg), andSr(0.07mg/kg),forapurityofgreaterthan9%. [0134] Thewashingconditionsmayafecttheamountof sodiumcarbonate/chlorideentrainedinthelithiumcarbon ateproduct. Example2 [0135] Theelectrolysisprocesconvertsapurified,con centrated lithium chloride solution into a concentrated [0137]Theanolyteflowsystemincludedafedtank, pump,degasingtank,chlorinescruber,andcolection tank.Alithiumchloridesolutionhavingaconcentrationof about21%byweightwasplacedintheanolytefedtankand heatedtoabout90°C.Theheatedsolutionwaspumpedinto theanodechamberofthecelinasinglepasmodeataflow rateofabout20cm3/min,corespondingtoafacevelocity ofabout0.13cm/s.Upon exitingthecel,thelithium chloridesolutionandentrainedchlorinegas(producedatthe anode)werepasedthroughintoadegasingtank,which was equipedwithachlorinescruber,toremovethe chlorine.Thelithiumchloridesolutionwasthenpumped intoacolectiontankforstorage. [0138] Thecatholyteflowsystemincludedafedtank, pump,andwaterfedsystem.Lithiumhydroxidewasplaced inthefeedtankandheatedtoabout95°C.andfedtothe cathodechamberoftheelectrochemicalcelinrecirculating modeataflowrateofabout50mL/min,corespondingto afacevelocityofabout0.3cm/s.Waterwasaddedcon tinuouslytothesystemusingaperistalticpumptomaintain aconstantlithiumhydroxideconcentration.Therateof aditionwasmonitoredbytheweightlosofthewatertank. Nitrogenwasbubledthroughthecatholyterecirculation tanktominimizethereactionoflithiumhydroxideand carbondioxidefromtheair. [0139] Table1summarizestheexperimentalconditions usedinteststodeterminetheefectoftheconcentrationof thecatholyte. TABLE 1 Experimentalparametersforelectrolysisexperiments. Value 3000 A/m 64 cm 60cm3 60cm3 21 wt % 0.5-0.7 90°C. 2-3 hours 0.13 cm/s 0.33 cm/s [0140] Duringoperationoftheelectrochemical cel, sampleswerecolectedatthecatholyteinletandoutletand anolyteoutletportsevery30minutes.Celvoltagewas monitoredatthecelterminalsusingahandheldmultimeter. Thediferencebetwentheinletandoutletcatholyte hydroxideconcentrationsandthecelvoltagewereusedto calculatetheeficiencyandenergyconsumptionofthecel. Results lithiumhydroxidesolutionforsubsequentconversionto lithiumbicarbonate.Thelimitingfactordeterminingthe eficiencyoftheelectrochemicalcelistheconcentrationof lithiumhydroxideinthecatholyte,duetoback-migrationof hydroxideacrosthemembrane.Therefore,theexperiment wasdesignedwhereintheelectrochemicalcelwasoperated atfourdiferenthydroxideconcentrationstomaptheefect ofthelithiumhydroxideconcentrationanddeterminethe maximumconcentrationthatcouldbeprepared.Theexperi mentwasdesignedtomeasurethecurenteficiencyand energyutilizationofthedialysisprocesasafunctionof hydroxideconcentration.Withintheelectrochemicalcel, underanapliedfield,lithiumcationsmigratefromthe anolytetocatholyte,whilewaterpresentiselectrolyzedto H,andOH atthecathode.Intheory,eachelectronpased intheexternalcircuitcorespondstoanincreaseofone lithiumhydroxidemoleculeinthecatholyte,leadingtoan increaseinconcentrationoflithiumhydroxidewithtime. Parameter Themainineficiencyintheproces,thebackmigrationof OH-ionsfromcatholytetoanolyte,isdependentontheOH concentrationofthecatholyte.Therefore,theexperiments reportedherewereperformedwiththeintentionofmain tainingtheOH concentrationofthecatholyteconstantby adingwaterataknownrate.Theeficiencyofthereaction wasmeasuredbycomparingtheactualrateofaditionof waterwiththetheoreticaladition. Example3.ElectrolyticProductionofLithium HydroxidefromLithiumChloride 14 [0136]ExperimentalSet-Up.Theelectrolysissystemcon sistedoftheelectrolysiscelhavinganolyteandcatholyte flowsystems.Electrolysisoflithiumchloridesolutionswas cariedoutusinganFM01electrolyzer(ascalemodelofthe FM21 electrolyzerusedcomercialyinthechlor-alkali industry)manufacturedbyICI.Theelectrolyzerincluded lantern blade-style electrodes (anode: ruthenium oxide coatedtitanium;andcathode:nickel),andaNafion®982 membrane.Theactivesurfaceareaofeachelectrodewas about64cm2(4x16cm),andthecelgap(distancemeasured anodetocathode)wasbetweenabout12-13mm.TheFM01 summarizedinTable2andareshowninFIGS.6to9.FIG. electrolyzerwasoperatedwiththeflowparaleltothe16cm direction(ascomparedwithaflowdirectionparaleltothe 4cmdimension,asitisintendedtobeoperated),asthis improvedthemanagementofchlorineandhydrogengases evolvedfromtheelectrodes.Inadition,althoughanolyte andcatholyteflowsarenormalyfedfromopositesidesof thecel,inthepresentexperiment,theanolyteandcatholyte werefedfromthesamesideoftheelectrochemicalcel. 6demonstratesthedificultyinmaintainingaconstant lithiumhydroxideconcentrationbasedsolelybyadjusting CurentDensity ElectrodeArea AnolyteVolume CatholyteVolume LiClInletConcentration LiClInletpH Temperature TimeofOperation Anolyte(LiCl)FlowVelocity Catholyte(LiOH)FlowVelocity [0141]Theresultsoftheconcentrationofthecatholyteare therateofwateradition,intheabsenceofreal-time measurementsofthehydroxideconcentration,because watercanbeconsumedoradedtothecatholytebyavariety ofmechanisms,includingelectrolysis,evaporation,and migrationacrosthemembranewithlithiumcations.In general,thedatasugestthatthehighertheinitialconcenPDF Image | Patent LITHIUM CHLORIDE CONTAINING BRINE
PDF Search Title:
Patent LITHIUM CHLORIDE CONTAINING BRINEOriginal File Name Searched:
US20200399137A1.pdfDIY PDF Search: Google It | Yahoo | Bing
Product and Development Focus for Infinity Turbine
ORC Waste Heat Turbine and ORC System Build Plans: All turbine plans are $10,000 each. This allows you to build a system and then consider licensing for production after you have completed and tested a unit.Redox Flow Battery Technology: With the advent of the new USA tax credits for producing and selling batteries ($35/kW) we are focussing on a simple flow battery using shipping containers as the modular electrolyte storage units with tax credits up to $140,000 per system. Our main focus is on the salt battery. This battery can be used for both thermal and electrical storage applications. We call it the Cogeneration Battery or Cogen Battery. One project is converting salt (brine) based water conditioners to simultaneously produce power. In addition, there are many opportunities to extract Lithium from brine (salt lakes, groundwater, and producer water).Salt water or brine are huge sources for lithium. Most of the worlds lithium is acquired from a brine source. It's even in seawater in a low concentration. Brine is also a byproduct of huge powerplants, which can now use that as an electrolyte and a huge flow battery (which allows storage at the source).We welcome any business and equipment inquiries, as well as licensing our turbines for manufacturing.| CONTACT TEL: 608-238-6001 Email: greg@infinityturbine.com | RSS | AMP |
