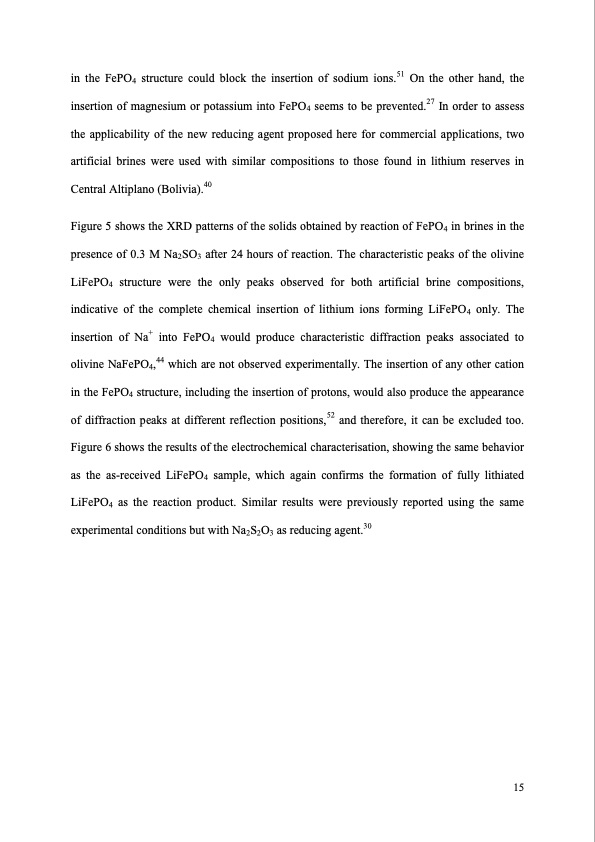

in the FePO4 structure could block the insertion of sodium ions.51 On the other hand, the insertion of magnesium or potassium into FePO4 seems to be prevented.27 In order to assess the applicability of the new reducing agent proposed here for commercial applications, two artificial brines were used with similar compositions to those found in lithium reserves in Central Altiplano (Bolivia).40 Figure 5 shows the XRD patterns of the solids obtained by reaction of FePO4 in brines in the presence of 0.3 M Na2SO3 after 24 hours of reaction. The characteristic peaks of the olivine LiFePO4 structure were the only peaks observed for both artificial brine compositions, indicative of the complete chemical insertion of lithium ions forming LiFePO4 only. The insertion of Na+ into FePO4 would produce characteristic diffraction peaks associated to olivine NaFePO4,44 which are not observed experimentally. The insertion of any other cation in the FePO4 structure, including the insertion of protons, would also produce the appearance of diffraction peaks at different reflection positions,52 and therefore, it can be excluded too. Figure 6 shows the results of the electrochemical characterisation, showing the same behavior as the as-received LiFePO4 sample, which again confirms the formation of fully lithiated LiFePO4 as the reaction product. Similar results were previously reported using the same experimental conditions but with Na2S2O3 as reducing agent.30 15PDF Image | Novel method of lithium production from brines
