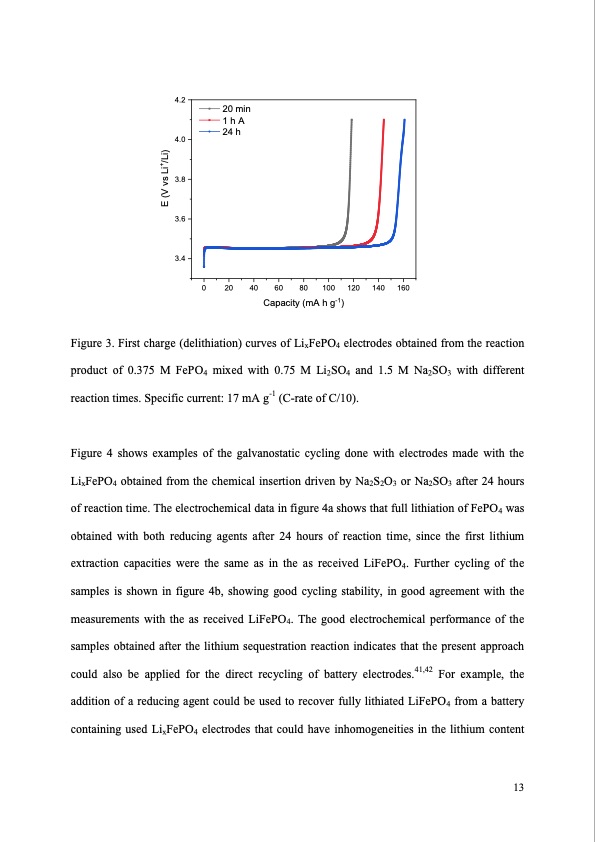

4.2 20 min 1 hA 24 h 4.0 3.8 3.6 3.4 Figure 3. First charge (delithiation) curves of LixFePO4 electrodes obtained from the reaction product of 0.375 M FePO4 mixed with 0.75 M Li2SO4 and 1.5 M Na2SO3 with different reaction times. Specific current: 17 mA g-1 (C-rate of C/10). Figure 4 shows examples of the galvanostatic cycling done with electrodes made with the LixFePO4 obtained from the chemical insertion driven by Na2S2O3 or Na2SO3 after 24 hours of reaction time. The electrochemical data in figure 4a shows that full lithiation of FePO4 was obtained with both reducing agents after 24 hours of reaction time, since the first lithium extraction capacities were the same as in the as received LiFePO4. Further cycling of the samples is shown in figure 4b, showing good cycling stability, in good agreement with the measurements with the as received LiFePO4. The good electrochemical performance of the samples obtained after the lithium sequestration reaction indicates that the present approach could also be applied for the direct recycling of battery electrodes.41,42 For example, the addition of a reducing agent could be used to recover fully lithiated LiFePO4 from a battery containing used LixFePO4 electrodes that could have inhomogeneities in the lithium content E (V vs Li+/Li) 0 20 40 60 80 100 120 140 160 Capacity (mA h g-1) 13PDF Image | Novel method of lithium production from brines
