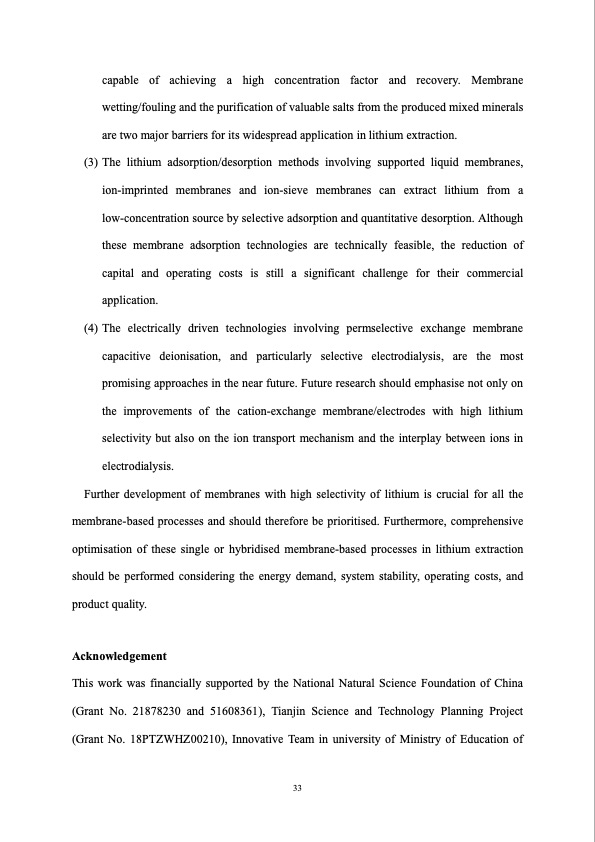

capable of achieving a high concentration factor and recovery. Membrane wetting/fouling and the purification of valuable salts from the produced mixed minerals are two major barriers for its widespread application in lithium extraction. (3) The lithium adsorption/desorption methods involving supported liquid membranes, ion-imprinted membranes and ion-sieve membranes can extract lithium from a low-concentration source by selective adsorption and quantitative desorption. Although these membrane adsorption technologies are technically feasible, the reduction of capital and operating costs is still a significant challenge for their commercial application. (4) The electrically driven technologies involving permselective exchange membrane capacitive deionisation, and particularly selective electrodialysis, are the most promising approaches in the near future. Future research should emphasise not only on the improvements of the cation-exchange membrane/electrodes with high lithium selectivity but also on the ion transport mechanism and the interplay between ions in electrodialysis. Further development of membranes with high selectivity of lithium is crucial for all the membrane-based processes and should therefore be prioritised. Furthermore, comprehensive optimisation of these single or hybridised membrane-based processes in lithium extraction should be performed considering the energy demand, system stability, operating costs, and product quality. Acknowledgement This work was financially supported by the National Natural Science Foundation of China (Grant No. 21878230 and 51608361), Tianjin Science and Technology Planning Project (Grant No. 18PTZWHZ00210), Innovative Team in university of Ministry of Education of 33PDF Image | Membrane based technologies for lithium recovery from water lithium
