PDF Publication Title:
Text from PDF Page: 024

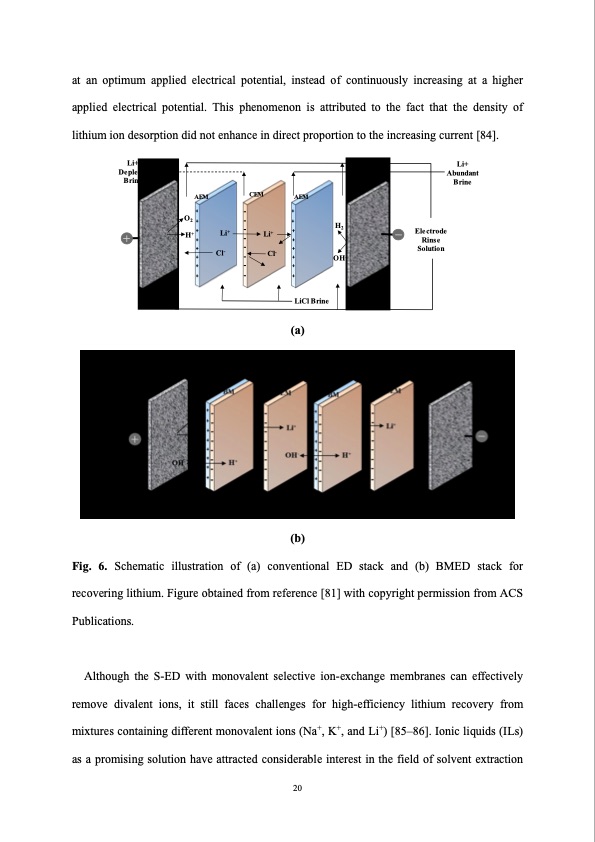

at an optimum applied electrical potential, instead of continuously increasing at a higher applied electrical potential. This phenomenon is attributed to the fact that the density of lithium ion desorption did not enhance in direct proportion to the increasing current [84]. Li+ De ple ted B rine Li+ Abundant B rine Ele ctrode Rinse Solution AEM O2 H+ CEM Li+ Li+ Cl- Cl- (a) AEM LiClBrine H2 OH- (b) Fig. 6. Schematic illustration of (a) conventional ED stack and (b) BMED stack for recovering lithium. Figure obtained from reference [81] with copyright permission from ACS Publications. Although the S-ED with monovalent selective ion-exchange membranes can effectively remove divalent ions, it still faces challenges for high-efficiency lithium recovery from mixtures containing different monovalent ions (Na+, K+, and Li+) [85–86]. Ionic liquids (ILs) as a promising solution have attracted considerable interest in the field of solvent extraction 20PDF Image | Membrane based technologies for lithium recovery from water lithium
