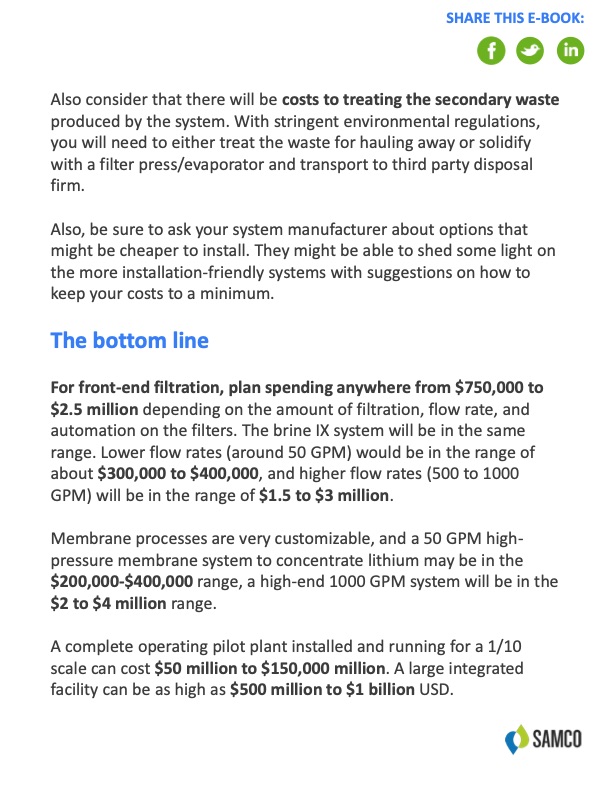

SHARE THIS E-BOOK: Also consider that there will be costs to treating the secondary waste produced by the system. With stringent environmental regulations, you will need to either treat the waste for hauling away or solidify with a filter press/evaporator and transport to third party disposal firm. Also, be sure to ask your system manufacturer about options that might be cheaper to install. They might be able to shed some light on the more installation-friendly systems with suggestions on how to keep your costs to a minimum. The bottom line For front-end filtration, plan spending anywhere from $750,000 to $2.5 million depending on the amount of filtration, flow rate, and automation on the filters. The brine IX system will be in the same range. Lower flow rates (around 50 GPM) would be in the range of about $300,000 to $400,000, and higher flow rates (500 to 1000 GPM) will be in the range of $1.5 to $3 million. Membrane processes are very customizable, and a 50 GPM high- pressure membrane system to concentrate lithium may be in the $200,000-$400,000 range, a high-end 1000 GPM system will be in the $2 to $4 million range. A complete operating pilot plant installed and running for a 1/10 scale can cost $50 million to $150,000 million. A large integrated facility can be as high as $500 million to $1 billion USD.PDF Image | LITHIUM EXTRACTION from Samco
