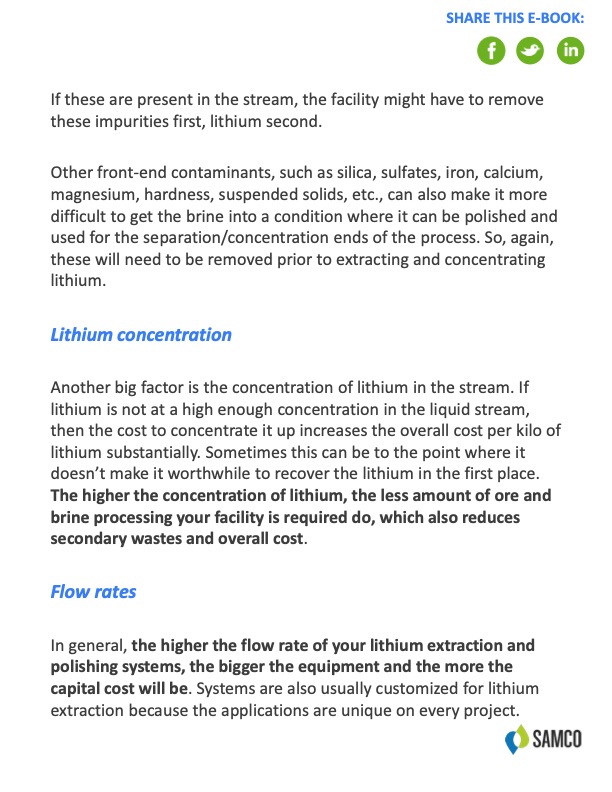

SHARE THIS E-BOOK: If these are present in the stream, the facility might have to remove these impurities first, lithium second. Other front-end contaminants, such as silica, sulfates, iron, calcium, magnesium, hardness, suspended solids, etc., can also make it more difficult to get the brine into a condition where it can be polished and used for the separation/concentration ends of the process. So, again, these will need to be removed prior to extracting and concentrating lithium. Lithium concentration Another big factor is the concentration of lithium in the stream. If lithium is not at a high enough concentration in the liquid stream, then the cost to concentrate it up increases the overall cost per kilo of lithium substantially. Sometimes this can be to the point where it doesn’t make it worthwhile to recover the lithium in the first place. The higher the concentration of lithium, the less amount of ore and brine processing your facility is required do, which also reduces secondary wastes and overall cost. Flow rates In general, the higher the flow rate of your lithium extraction and polishing systems, the bigger the equipment and the more the capital cost will be. Systems are also usually customized for lithium extraction because the applications are unique on every project.PDF Image | LITHIUM EXTRACTION from Samco
