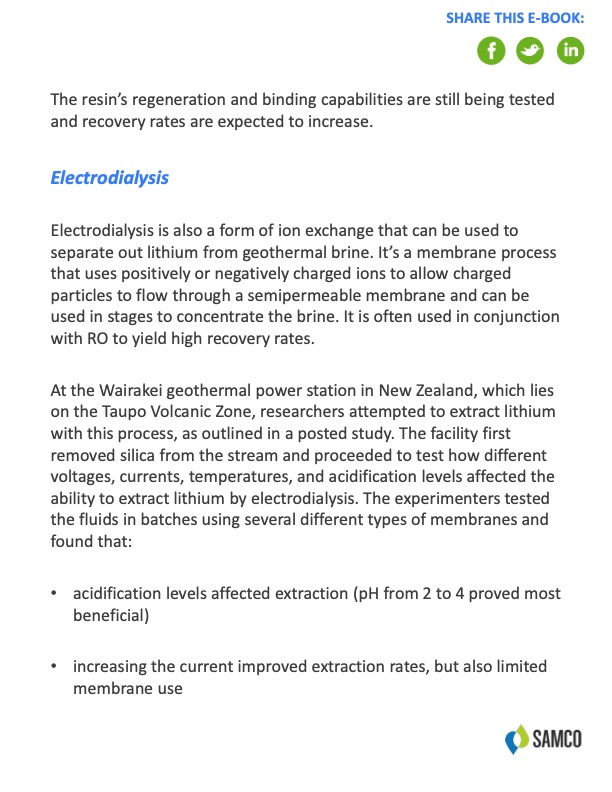

SHARE THIS E-BOOK: The resin’s regeneration and binding capabilities are still being tested and recovery rates are expected to increase. Electrodialysis Electrodialysis is also a form of ion exchange that can be used to separate out lithium from geothermal brine. It’s a membrane process that uses positively or negatively charged ions to allow charged particles to flow through a semipermeable membrane and can be used in stages to concentrate the brine. It is often used in conjunction with RO to yield high recovery rates. At the Wairakei geothermal power station in New Zealand, which lies on the Taupo Volcanic Zone, researchers attempted to extract lithium with this process, as outlined in a posted study. The facility first removed silica from the stream and proceeded to test how different voltages, currents, temperatures, and acidification levels affected the ability to extract lithium by electrodialysis. The experimenters tested the fluids in batches using several different types of membranes and found that: • acidification levels affected extraction (pH from 2 to 4 proved most beneficial) • increasing the current improved extraction rates, but also limited membrane usePDF Image | LITHIUM EXTRACTION from Samco
