Text from PDF Page: 022

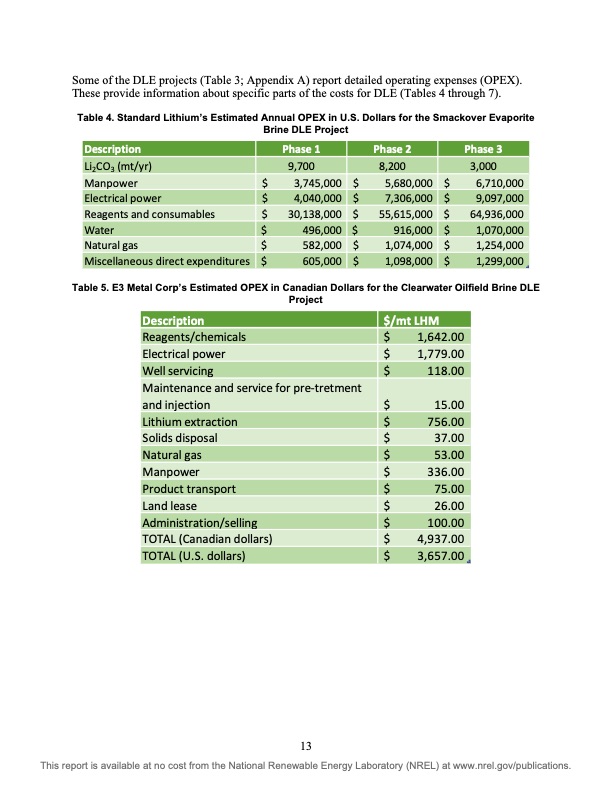

Some of the DLE projects (Table 3; Appendix A) report detailed operating expenses (OPEX). These provide information about specific parts of the costs for DLE (Tables 4 through 7). Table 4. Standard Lithium’s Estimated Annual OPEX in U.S. Dollars for the Smackover Evaporite Brine DLE Project Description Phase 1 Phase 2 Phase 3 Li2CO3 (mt/yr) 9,700 8,200 3,000 Manpower $ 3,745,000 $ 5,680,000 $ 6,710,000 Electrical power $ 4,040,000 $ 7,306,000 $ 9,097,000 Reagents and consumables $ 30,138,000 $ 55,615,000 $ 64,936,000 Water $ 496,000 $ 916,000 $ 1,070,000 Natural gas $ 582,000 $ 1,074,000 $ 1,254,000 Miscellaneous direct expenditures $ 605,000 $ 1,098,000 $ 1,299,000 Table 5. E3 Metal Corp’s Estimated OPEX in Canadian Dollars for the Clearwater Oilfield Brine DLE Project Description $/mt LHM Reagents/chemicals $ 1,642.00 Electrical power $ 1,779.00 Well servicing $ 118.00 Maintenance and service for pre-tretment and injection $ 15.00 Lithium extraction $ 756.00 Solids disposal $ 37.00 Natural gas $ 53.00 Manpower $ 336.00 Product transport $ 75.00 Land lease $ 26.00 Administration/selling $ 100.00 TOTAL (Canadian dollars) $ 4,937.00 TOTAL (U.S. dollars) $ 3,657.00 13 This report is available at no cost from the National Renewable Energy Laboratory (NREL) at www.nrel.gov/publications.PDF Image | Lithium Extraction from Geothermal Brines
