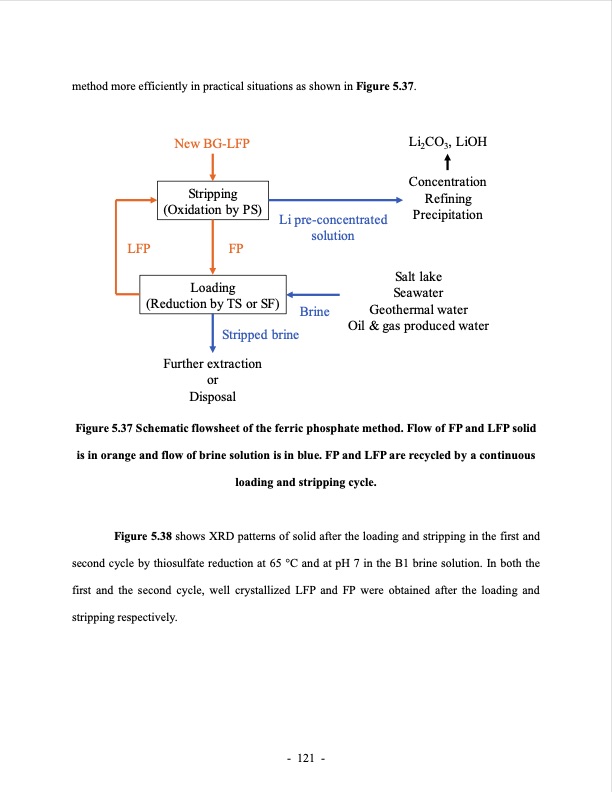

method more efficiently in practical situations as shown in Figure 5.37. New BG-LFP LFP FP Li pre-concentrated solution Li2CO3, LiOH Concentration Refining Precipitation Stripping (Oxidation by PS) Loading (Reduction by TS or SF) Brine Stripped brine Further extraction or Disposal Salt lake Seawater Geothermal water Oil & gas produced water Figure 5.37 Schematic flowsheet of the ferric phosphate method. Flow of FP and LFP solid is in orange and flow of brine solution is in blue. FP and LFP are recycled by a continuous loading and stripping cycle. Figure 5.38 shows XRD patterns of solid after the loading and stripping in the first and second cycle by thiosulfate reduction at 65 °C and at pH 7 in the B1 brine solution. In both the first and the second cycle, well crystallized LFP and FP were obtained after the loading and stripping respectively. - 121 -PDF Image | LITHIUM EXTRACTION FROM BRINE using ion resin
