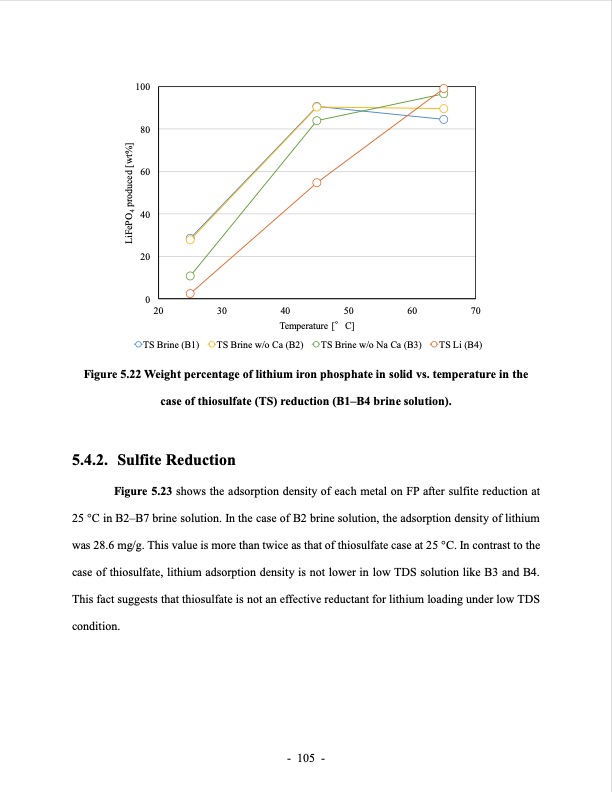

100 80 60 40 20 0 TS Brine (B1) TS Brine w/o Ca (B2) TS Brine w/o Na Ca (B3) TS Li (B4) 20 30 40 50 60 70 Temperature [°C] Figure 5.22 Weight percentage of lithium iron phosphate in solid vs. temperature in the case of thiosulfate (TS) reduction (B1–B4 brine solution). 5.4.2. SulfiteReduction Figure 5.23 shows the adsorption density of each metal on FP after sulfite reduction at 25 °C in B2–B7 brine solution. In the case of B2 brine solution, the adsorption density of lithium was 28.6 mg/g. This value is more than twice as that of thiosulfate case at 25 °C. In contrast to the case of thiosulfate, lithium adsorption density is not lower in low TDS solution like B3 and B4. This fact suggests that thiosulfate is not an effective reductant for lithium loading under low TDS condition. - 105 - LiFePO4 produced [wt%]PDF Image | LITHIUM EXTRACTION FROM BRINE using ion resin
