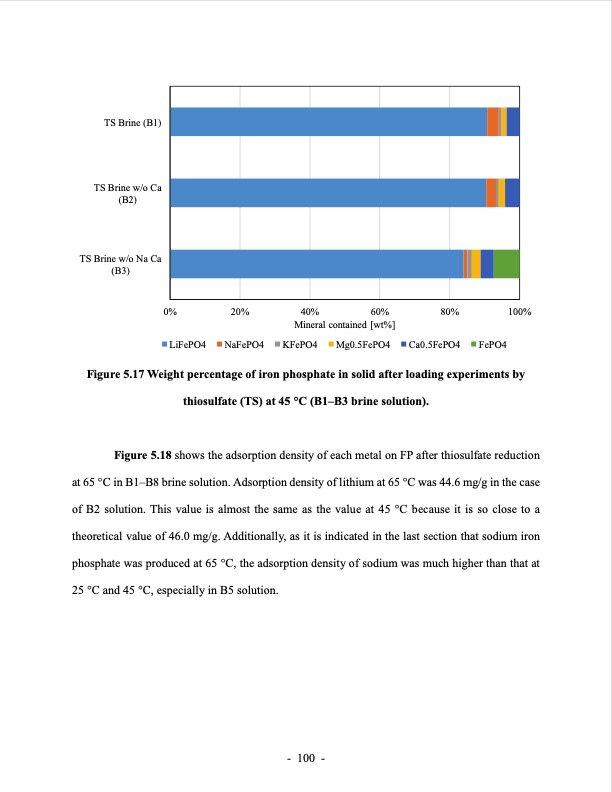

TS Brine (B1) TS Brine w/o Ca (B2) TS Brine w/o Na Ca (B3) 0% LiFePO4 20% 40% Mineral contained [wt%] 100% FePO4 60% 80% NaFePO4 KFePO4 Mg0.5FePO4 Ca0.5FePO4 Figure 5.17 Weight percentage of iron phosphate in solid after loading experiments by thiosulfate (TS) at 45 °C (B1–B3 brine solution). Figure 5.18 shows the adsorption density of each metal on FP after thiosulfate reduction at 65 °C in B1–B8 brine solution. Adsorption density of lithium at 65 °C was 44.6 mg/g in the case of B2 solution. This value is almost the same as the value at 45 °C because it is so close to a theoretical value of 46.0 mg/g. Additionally, as it is indicated in the last section that sodium iron phosphate was produced at 65 °C, the adsorption density of sodium was much higher than that at 25 °C and 45 °C, especially in B5 solution. - 100 -PDF Image | LITHIUM EXTRACTION FROM BRINE using ion resin
