PDF Publication Title:
Text from PDF Page: 108

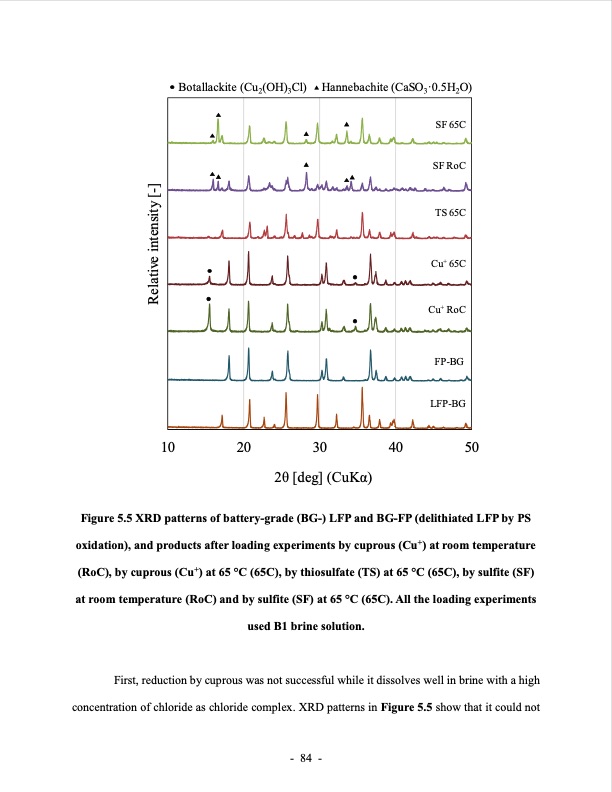

Botallackite (Cu2(OH)3Cl) Hannebachite (CaSO3·0.5H2O) SF65C SF RoC TS65C Cu+ 65C Cu+ RoC FP-BG LFP-BG Relative intensity [-] 10 20 30 40 50 2θ [deg] (CuKα) Figure 5.5 XRD patterns of battery-grade (BG-) LFP and BG-FP (delithiated LFP by PS oxidation), and products after loading experiments by cuprous (Cu+) at room temperature (RoC), by cuprous (Cu+) at 65 °C (65C), by thiosulfate (TS) at 65 °C (65C), by sulfite (SF) at room temperature (RoC) and by sulfite (SF) at 65 °C (65C). All the loading experiments used B1 brine solution. First, reduction by cuprous was not successful while it dissolves well in brine with a high concentration of chloride as chloride complex. XRD patterns in Figure 5.5 show that it could not - 84 -PDF Image | LITHIUM EXTRACTION FROM BRINE using ion resin
