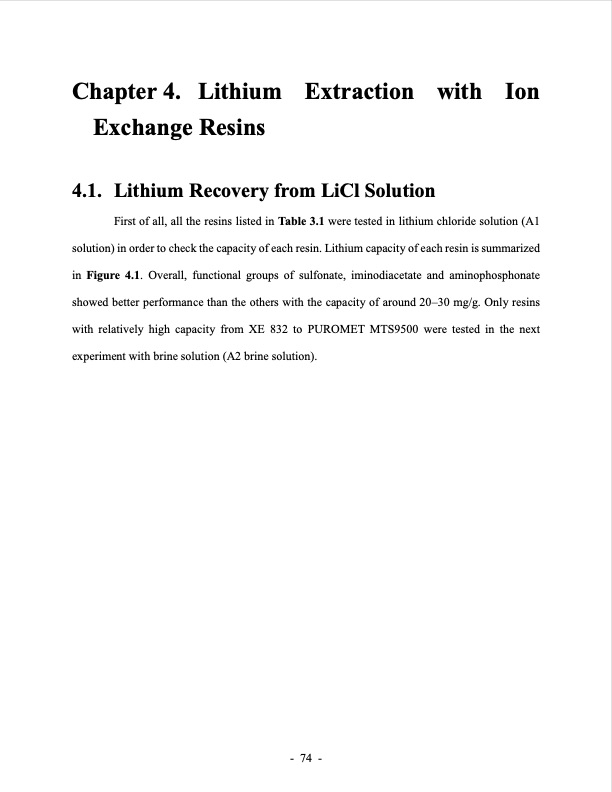

Chapter 4. Lithium Extraction with Ion Exchange Resins 4.1. Lithium Recovery from LiCl Solution First of all, all the resins listed in Table 3.1 were tested in lithium chloride solution (A1 solution) in order to check the capacity of each resin. Lithium capacity of each resin is summarized in Figure 4.1. Overall, functional groups of sulfonate, iminodiacetate and aminophosphonate showed better performance than the others with the capacity of around 20–30 mg/g. Only resins with relatively high capacity from XE 832 to PUROMET MTS9500 were tested in the next experiment with brine solution (A2 brine solution). - 74 -PDF Image | LITHIUM EXTRACTION FROM BRINE using ion resin
