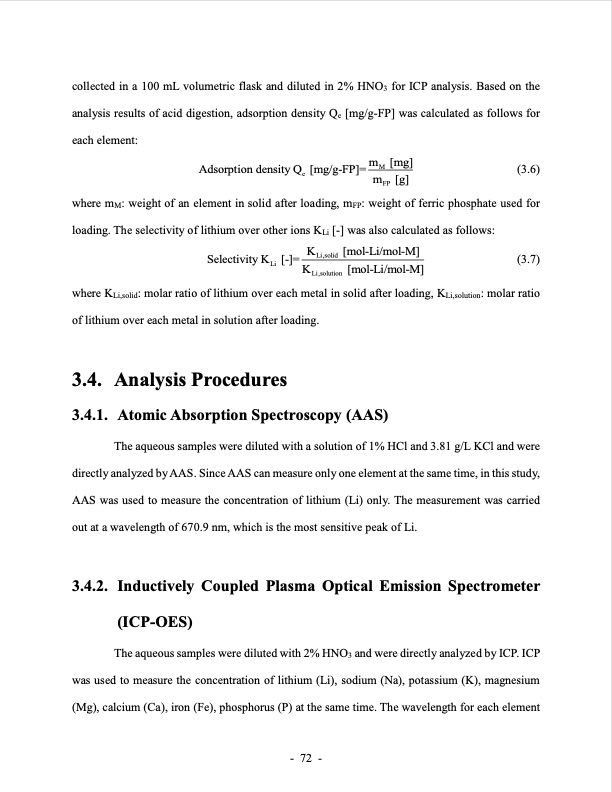

collected in a 100 mL volumetric flask and diluted in 2% HNO3 for ICP analysis. Based on the analysis results of acid digestion, adsorption density Qe [mg/g-FP] was calculated as follows for each element: (3.6) where mM: weight of an element in solid after loading, mFP: weight of ferric phosphate used for loading. The selectivity of lithium over other ions KLi [-] was also calculated as follows: (3.7) where KLi,solid: molar ratio of lithium over each metal in solid after loading, KLi,solution: molar ratio of lithium over each metal in solution after loading. 3.4. AnalysisProcedures 3.4.1. AtomicAbsorptionSpectroscopy(AAS) The aqueous samples were diluted with a solution of 1% HCl and 3.81 g/L KCl and were directly analyzed by AAS. Since AAS can measure only one element at the same time, in this study, AAS was used to measure the concentration of lithium (Li) only. The measurement was carried out at a wavelength of 670.9 nm, which is the most sensitive peak of Li. 3.4.2. Inductively Coupled Plasma Optical Emission Spectrometer (ICP-OES) The aqueous samples were diluted with 2% HNO3 and were directly analyzed by ICP. ICP was used to measure the concentration of lithium (Li), sodium (Na), potassium (K), magnesium (Mg), calcium (Ca), iron (Fe), phosphorus (P) at the same time. The wavelength for each element Adsorption density Qe [mg/g-FP]= mM [mg] mFP [g] Selectivity KLi [-]= KLi,solid [mol-Li/mol-M] K Li ,solution [mol-Li/mol-M] - 72 -PDF Image | LITHIUM EXTRACTION FROM BRINE using ion resin
