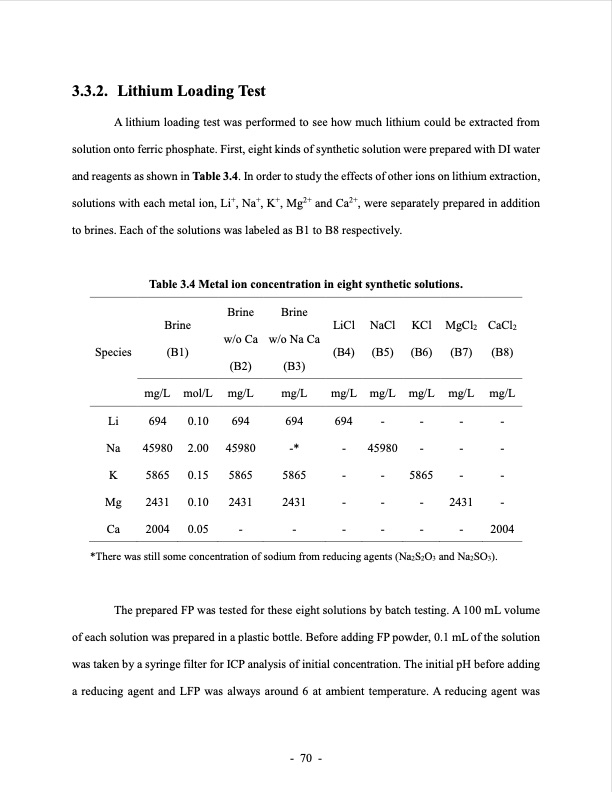

3.3.2. LithiumLoadingTest A lithium loading test was performed to see how much lithium could be extracted from solution onto ferric phosphate. First, eight kinds of synthetic solution were prepared with DI water and reagents as shown in Table 3.4. In order to study the effects of other ions on lithium extraction, solutions with each metal ion, Li+, Na+, K+, Mg2+ and Ca2+, were separately prepared in addition to brines. Each of the solutions was labeled as B1 to B8 respectively. Table 3.4 Metal ion concentration in eight synthetic solutions. Brine Species (B1) Brine Brine w/o Ca w/o Na Ca LiCl NaCl (B4) (B5) KCl MgCl2 CaCl2 (B6) (B7) (B8) (B2) (B3) mg/L mg/L mg/L mg/L mg/L - - - Na 45980 2.00 45980 -* - 45980 - - - K 5865 0.15 5865 5865 - - 5865 - - Mg 2431 0.10 2431 2431 - - - 2431 - Li mg/L mol/L 694 0.10 694 694 mg/L mg/L 694 - Ca 2004 0.05 - - - - - - 2004 *There was still some concentration of sodium from reducing agents (Na2S2O3 and Na2SO3). The prepared FP was tested for these eight solutions by batch testing. A 100 mL volume of each solution was prepared in a plastic bottle. Before adding FP powder, 0.1 mL of the solution was taken by a syringe filter for ICP analysis of initial concentration. The initial pH before adding a reducing agent and LFP was always around 6 at ambient temperature. A reducing agent was - 70 -PDF Image | LITHIUM EXTRACTION FROM BRINE using ion resin
