PDF Publication Title:
Text from PDF Page: 088

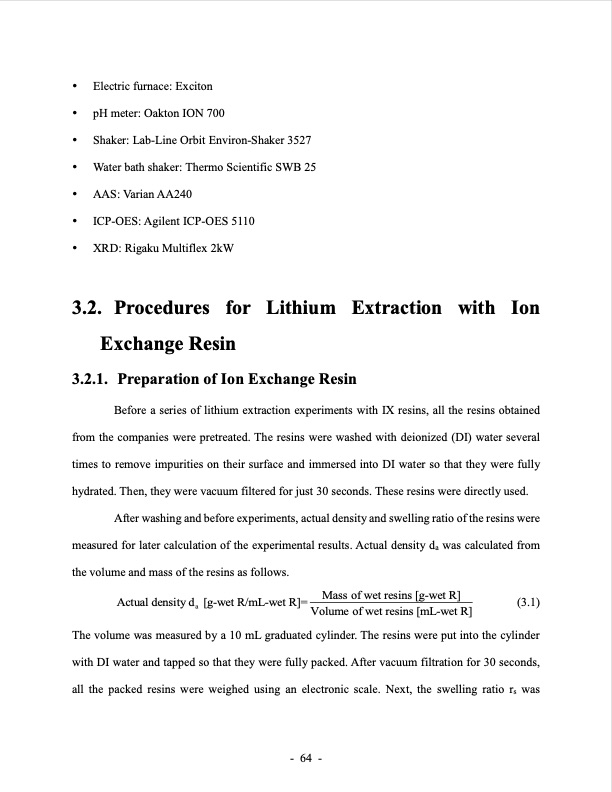

Electric furnace: Exciton pH meter: Oakton ION 700 Shaker: Lab-Line Orbit Environ-Shaker 3527 Water bath shaker: Thermo Scientific SWB 25 AAS:VarianAA240 ICP-OES: Agilent ICP-OES 5110 XRD: Rigaku Multiflex 2kW 3.2. Procedures for Lithium Extraction with Ion Exchange Resin 3.2.1. Preparation of Ion Exchange Resin Before a series of lithium extraction experiments with IX resins, all the resins obtained from the companies were pretreated. The resins were washed with deionized (DI) water several times to remove impurities on their surface and immersed into DI water so that they were fully hydrated. Then, they were vacuum filtered for just 30 seconds. These resins were directly used. After washing and before experiments, actual density and swelling ratio of the resins were measured for later calculation of the experimental results. Actual density da was calculated from the volume and mass of the resins as follows. (3.1) The volume was measured by a 10 mL graduated cylinder. The resins were put into the cylinder with DI water and tapped so that they were fully packed. After vacuum filtration for 30 seconds, all the packed resins were weighed using an electronic scale. Next, the swelling ratio rs was Actual density da [g-wet R/mL-wet R]= Mass of wet resins [g-wet R] Volume of wet resins [mL-wet R] - 64 -PDF Image | LITHIUM EXTRACTION FROM BRINE using ion resin
