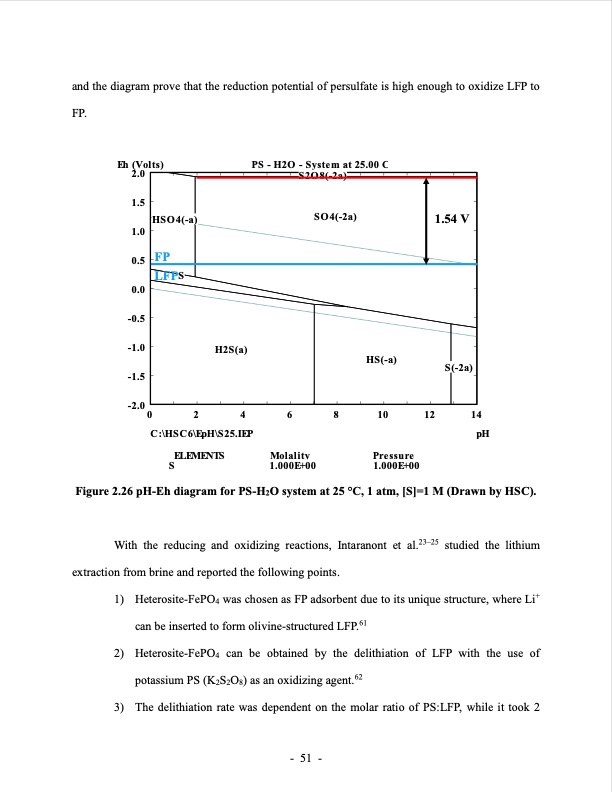

and the diagram prove that the reduction potential of persulfate is high enough to oxidize LFP to FP. Eh (Volts) 2.0 1.5 1.0 0.5 0.0 -0.5 -1.0 -1.5 PS - H2O - System at 25.00 C -2.00 2 4 6 8 10 12 14 C : \ H S C 6 \ Ep H \ S 2 5 . I EP EL EM EN TS S p H M o l a l i t y 1.000E+00 P r e s s u r e 1.000E+00 S2O8(-2a) HSO4(-a) SO4(-2a) 1.54 V FP LFPS H2S(a) HS(-a) S(-2a) Figure 2.26 pH-Eh diagram for PS-H2O system at 25 °C, 1 atm, [S]=1 M (Drawn by HSC). With the reducing and oxidizing reactions, Intaranont et al.23–25 studied the lithium extraction from brine and reported the following points. 1) Heterosite-FePO4 was chosen as FP adsorbent due to its unique structure, where Li+ can be inserted to form olivine-structured LFP.61 2) Heterosite-FePO4 can be obtained by the delithiation of LFP with the use of potassium PS (K2S2O8) as an oxidizing agent.62 3) The delithiation rate was dependent on the molar ratio of PS:LFP, while it took 2 - 51 -PDF Image | LITHIUM EXTRACTION FROM BRINE using ion resin
