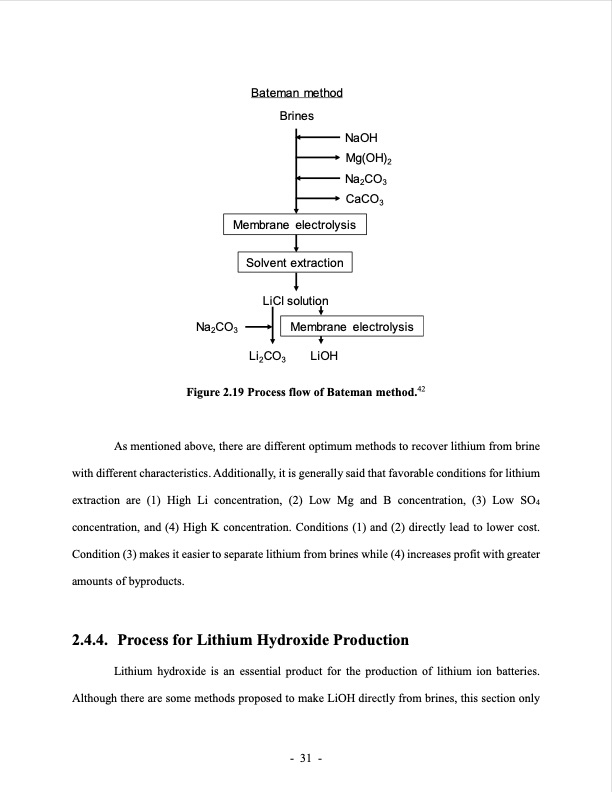

Bateman method Brines NaOH Mg(OH)2 Na2CO3 CaCO3 Membrane electrolysis Solvent extraction LiCl solution Na2CO3 Membrane electrolysis Li2CO3 LiOH Figure 2.19 Process flow of Bateman method.42 As mentioned above, there are different optimum methods to recover lithium from brine with different characteristics. Additionally, it is generally said that favorable conditions for lithium extraction are (1) High Li concentration, (2) Low Mg and B concentration, (3) Low SO4 concentration, and (4) High K concentration. Conditions (1) and (2) directly lead to lower cost. Condition (3) makes it easier to separate lithium from brines while (4) increases profit with greater amounts of byproducts. 2.4.4. ProcessforLithiumHydroxideProduction Lithium hydroxide is an essential product for the production of lithium ion batteries. Although there are some methods proposed to make LiOH directly from brines, this section only - 31 -PDF Image | LITHIUM EXTRACTION FROM BRINE using ion resin
