Text from PDF Page: 050

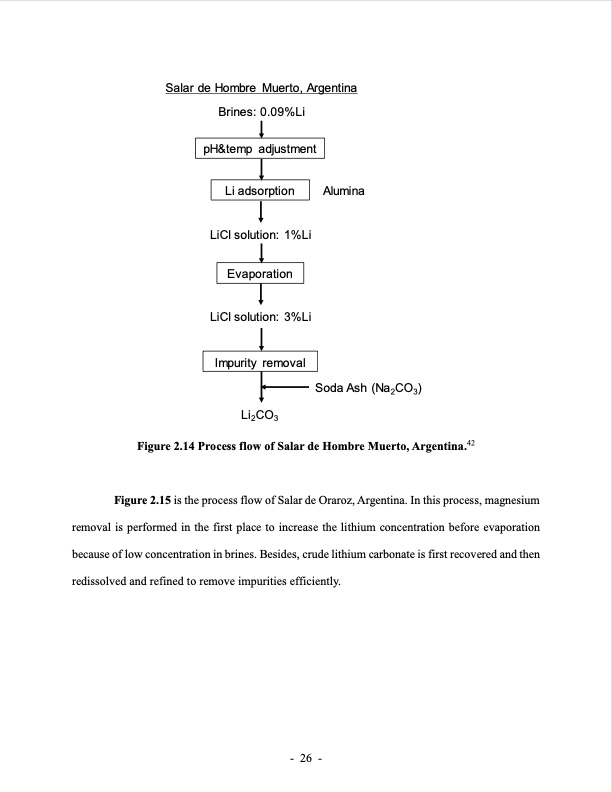

Salar de Hombre Muerto, Argentina Brines: 0.09%Li pH&temp adjustment Li adsorption LiCl solution: 1%Li Evaporation LiCl solution: 3%Li Impurity removal Li2CO3 Alumina Soda Ash (Na2CO3) Figure 2.14 Process flow of Salar de Hombre Muerto, Argentina.42 Figure 2.15 is the process flow of Salar de Oraroz, Argentina. In this process, magnesium removal is performed in the first place to increase the lithium concentration before evaporation because of low concentration in brines. Besides, crude lithium carbonate is first recovered and then redissolved and refined to remove impurities efficiently. - 26 -PDF Image | LITHIUM EXTRACTION FROM BRINE using ion resin
