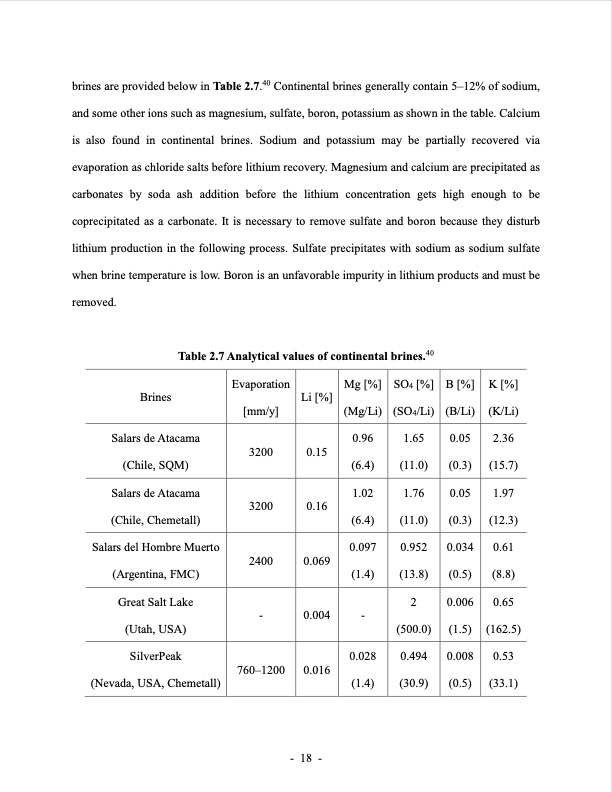

brines are provided below in Table 2.7.40 Continental brines generally contain 5–12% of sodium, and some other ions such as magnesium, sulfate, boron, potassium as shown in the table. Calcium is also found in continental brines. Sodium and potassium may be partially recovered via evaporation as chloride salts before lithium recovery. Magnesium and calcium are precipitated as carbonates by soda ash addition before the lithium concentration gets high enough to be coprecipitated as a carbonate. It is necessary to remove sulfate and boron because they disturb lithium production in the following process. Sulfate precipitates with sodium as sodium sulfate when brine temperature is low. Boron is an unfavorable impurity in lithium products and must be removed. Table 2.7 Analytical values of continental brines.40 Brines Salars de Atacama (Chile, SQM) Salars de Atacama (Chile, Chemetall) Salars del Hombre Muerto (Argentina, FMC) Great Salt Lake (Utah, USA) SilverPeak (Nevada, USA, Chemetall) K [%] (K/Li) 2.36 (15.7) 1.97 (12.3) 0.61 (8.8) 0.65 (162.5) 0.53 (33.1) Evaporation [mm/y] Li [%] Mg [%] (Mg/Li) SO4 [%] (SO4/Li) B [%] (B/Li) 3200 0.15 0.96 (6.4) 1.65 (11.0) 0.05 (0.3) 3200 0.16 1.02 (6.4) 1.76 (11.0) 0.05 (0.3) 2400 0.069 0.097 (1.4) 0.952 (13.8) 0.034 (0.5) - 0.004 - 2 (500.0) 0.006 (1.5) 760–1200 0.016 0.028 (1.4) 0.494 (30.9) 0.008 (0.5) - 18 -PDF Image | LITHIUM EXTRACTION FROM BRINE using ion resin
