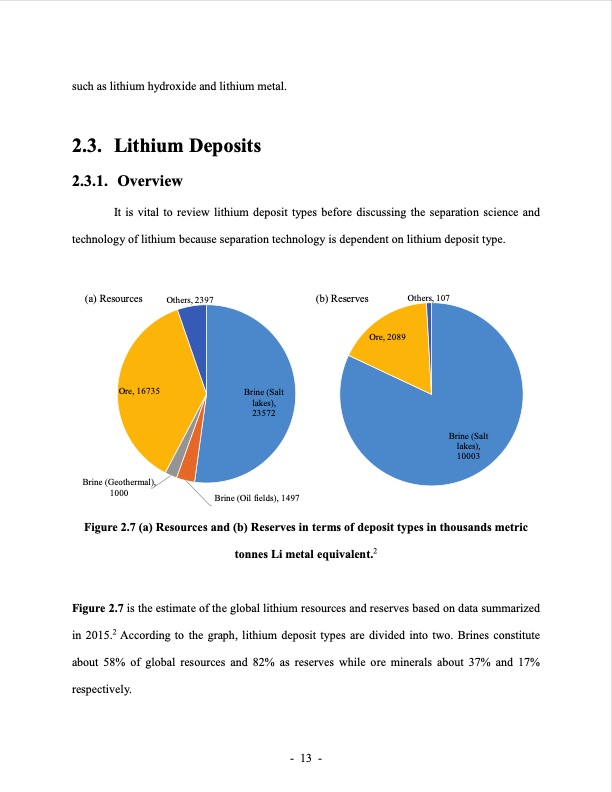

such as lithium hydroxide and lithium metal. 2.3. LithiumDeposits 2.3.1. Overview It is vital to review lithium deposit types before discussing the separation science and technology of lithium because separation technology is dependent on lithium deposit type. (a) Resources Ore, 16735 Brine (Geothermal), 1000 Others, 2397 Brine (Salt lakes), 23572 Brine (Oil fields), 1497 (b) Reserves Others, 107 Ore, 2089 Brine (Salt lakes), 10003 Figure 2.7 (a) Resources and (b) Reserves in terms of deposit types in thousands metric tonnes Li metal equivalent.2 Figure 2.7 is the estimate of the global lithium resources and reserves based on data summarized in 2015.2 According to the graph, lithium deposit types are divided into two. Brines constitute about 58% of global resources and 82% as reserves while ore minerals about 37% and 17% respectively. - 13 -PDF Image | LITHIUM EXTRACTION FROM BRINE using ion resin
