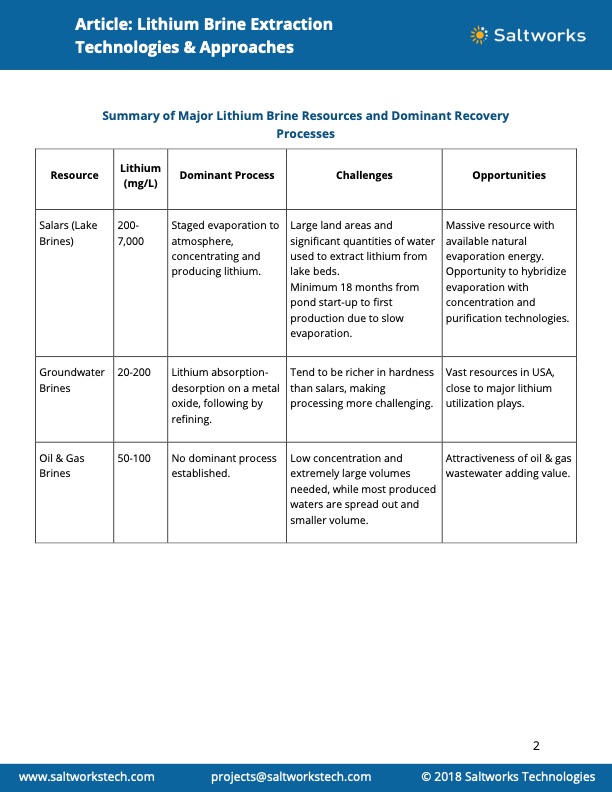

Article: Lithium Brine Extraction Technologies & Approaches Summary of Major Lithium Brine Resources and Dominant Recovery Processes Resource Salars (Lake Brines) Lithium Dominant Process (mg/L) 200- Staged evaporation to 7,000 atmosphere, concentrating and producing lithium. 20-200 Lithium absorption- desorption on a metal oxide, following by refining. 50-100 No dominant process established. Challenges Large land areas and significant quantities of water used to extract lithium from lake beds. Minimum 18 months from pond start-up to first production due to slow evaporation. Tend to be richer in hardness than salars, making processing more challenging. Low concentration and extremely large volumes needed, while most produced waters are spread out and smaller volume. Opportunities Massive resource with available natural evaporation energy. Opportunity to hybridize evaporation with concentration and purification technologies. Vast resources in USA, close to major lithium utilization plays. Attractiveness of oil & gas wastewater adding value. Groundwater Brines Oil & Gas Brines 2 www.saltworkstech.com projects@saltworkstech.com © 2018 Saltworks TechnologiesPDF Image | Lithium Brine Extraction
