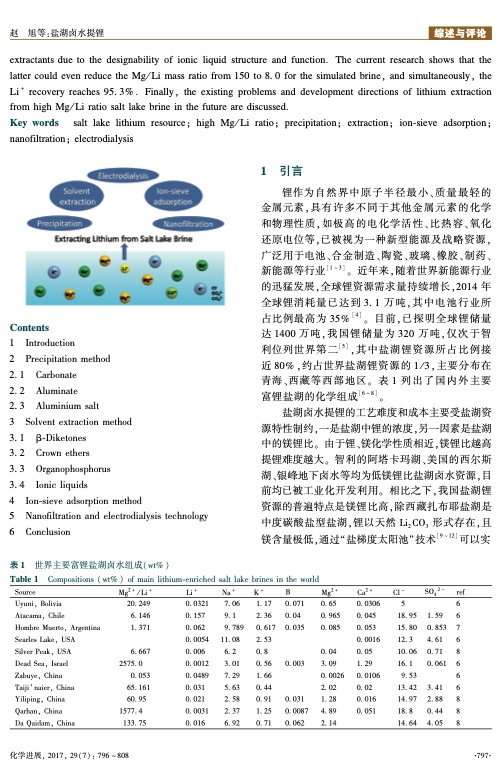

赵 旭等:盐湖卤水提锂 综述与评论 extractants due to the designability of ionic liquid structure and function. The current research shows that the latter could even reduce the Mg / Li mass ratio from 150 to 8 0 for the simulated brine， and simultaneously， the Li + recovery reaches 95 3% . Finally， the existing problems and development directions of lithium extraction from high Mg / Li ratio salt lake brine in the future are discussed. Key words salt lake lithium resource; high Mg / Li ratio; precipitation; extraction; ion⁃sieve adsorption; nanofiltration; electrodialysis Contents 1 Introduction 2 Precipitation method 2 1 Carbonate 2 2 Aluminate 2 3 Aluminium salt 3 Solvent extraction method 3 1 β⁃Diketones 3 2 Crown ethers 3 3 Organophosphorus 3 4 Ionic liquids 4 Ion⁃sieve adsorption method 5 Nanofiltration and electrodialysis technology 6 Conclusion 1 引言 锂作为自然界中原子半径最小、质量最轻的 金属元素，具有许多不同于其他金属元素的化学 和物理性质，如极高的电化学活性、比热容、氧化 还原电位等，已被视为一种新型能源及战略资源， 广泛用于电池、合金制造、陶瓷、玻璃、橡胶、制药、 新能源等行业[1 ~ 3] 。 近年来，随着世界新能源行业 的迅猛发展，全球锂资源需求量持续增长，2014 年 全球锂消耗量已达到 3 1 万吨，其中电池行业所 占比例最高为 35% [4] 。 目前，已探明全球锂储量 达 1400 万吨，我国锂储量为 320 万吨，仅次于智 利位列世界第二[5] ，其中盐湖锂资源所占比例接 近 80% ，约占世界盐湖锂资源的 1 / 3，主要分布在 青海、西藏等西部地区。 表 1 列出了国内外主要 富锂盐湖的化学组成[6 ~ 8] 。 盐湖卤水提锂的工艺难度和成本主要受盐湖资 源特性制约，一是盐湖中锂的浓度，另一因素是盐湖 中的镁锂比。 由于锂、镁化学性质相近，镁锂比越高 提锂难度越大。 智利的阿塔卡玛湖、美国的西尔斯 湖、银峰地下卤水等均为低镁锂比盐湖卤水资源，目 前均已被工业化开发利用。 相比之下，我国盐湖锂 资源的普遍特点是镁锂比高，除西藏扎布耶盐湖是 中度碳酸盐型盐湖，锂以天然 Li2 CO3 形式存在，且 镁含量极低，通过“盐梯度太阳池”技术[9 ~ 12] 可以实 表 1 世界主要富锂盐湖卤水组成(wt% ) Table 1 Compositions (wt% ) of main lithium⁃enriched salt lake brines in the world SO42 - ref 6 1 59 6 0 853 7 4 61 6 0 71 8 0 061 6 6 3 41 6 2 88 8 0 44 8 4 05 8 Source Uyuni， Bolivia Atacama， Chile Hombre Muerto， Argentina Searles Lake， USA Silver Peak， USA Dead Sea， Israel Zabuye， China Taiji’ naier， China Yiliping， China Qarhan， China Da Qaidam， China Mg2+ /Li+ 20 249 6 146 1 371 6 667 2575 0 0 053 65 161 60 95 1577 4 133 75 Li+ Na+ K+ B 0 071 0 04 0 035 0 003 0 031 0 0087 0 062 Mg2 + 0 65 0 965 0 085 0 04 3 09 0 0026 2 02 1 28 4 89 2 14 Ca2 + 0 0306 0 045 0 053 0 0016 0 05 1 29 0 0106 0 02 0 016 0 051 Cl- 5 18 95 15 80 12 3 10 06 16 1 9 53 13 42 14 97 18 8 14 64 0 0321 0 157 0 062 0 0054 0 006 0 0012 0 0489 0 031 0 021 0 0031 0 016 7 06 9 1 9 789 11 08 6 2 3 01 7 29 5 63 2 58 2 37 6 92 1 17 2 36 0 617 2 53 08 0 56 1 66 0 44 0 91 1 25 0 71 化学进展， 2017， 29(7): 796 ~808 ·7 97·PDF Image | Extraction of Lithium from Salt Lake Brine
