PDF Publication Title:
Text from PDF Page: 219

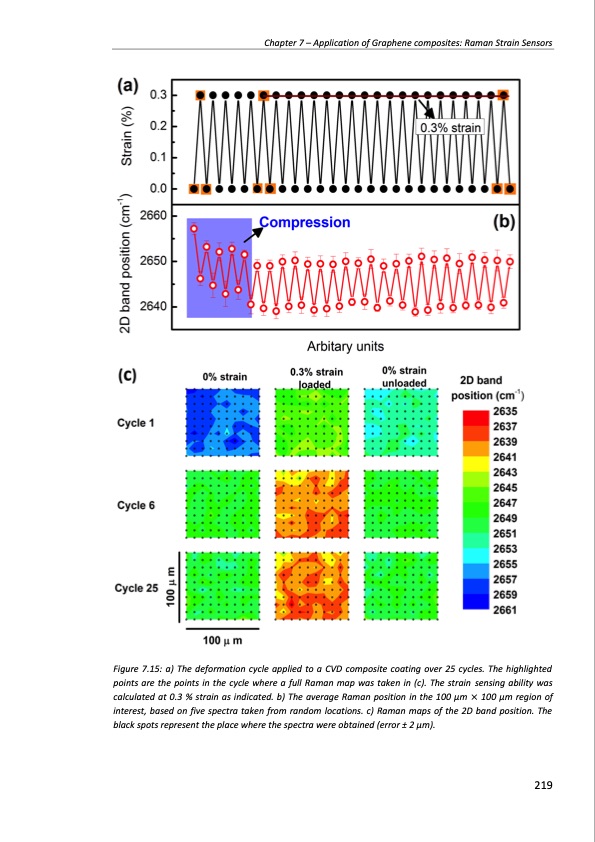

Chapter 7 – Application of Graphene composites: Raman Strain Sensors Figure 7.15: a) The deformation cycle applied to a CVD composite coating over 25 cycles. The highlighted points are the points in the cycle where a full Raman map was taken in (c). The strain sensing ability was calculated at 0.3 % strain as indicated. b) The average Raman position in the 100 μm × 100 μm region of interest, based on five spectra taken from random locations. c) Raman maps of the 2D band position. The black spots represent the place where the spectra were obtained (error ± 2 μm). 219PDF Image | PRODUCTION AND APPLICATIONS OF GRAPHENE AND ITS COMPOSITES
