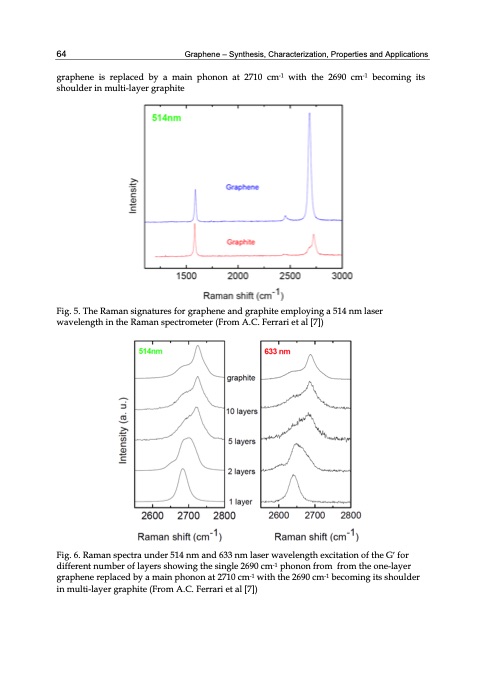

64 Graphene – Synthesis, Characterization, Properties and Applications graphene is replaced by a main phonon at 2710 cm-1 with the 2690 cm-1 becoming its shoulder in multi-layer graphite Fig. 5. The Raman signatures for graphene and graphite employing a 514 nm laser wavelength in the Raman spectrometer (From A.C. Ferrari et al [7]) Fig. 6. Raman spectra under 514 nm and 633 nm laser wavelength excitation of the G for different number of layers showing the single 2690 cm-1 phonon from from the one-layer graphene replaced by a main phonon at 2710 cm-1 with the 2690 cm-1 becoming its shoulder in multi-layer graphite (From A.C. Ferrari et al [7])PDF Image | GRAPHENE SYNTHESIS CHARACTERIZATION PROPERTIES
