LM2500 Combustion Turbine Course MILITARY SEALIFT COMMAND

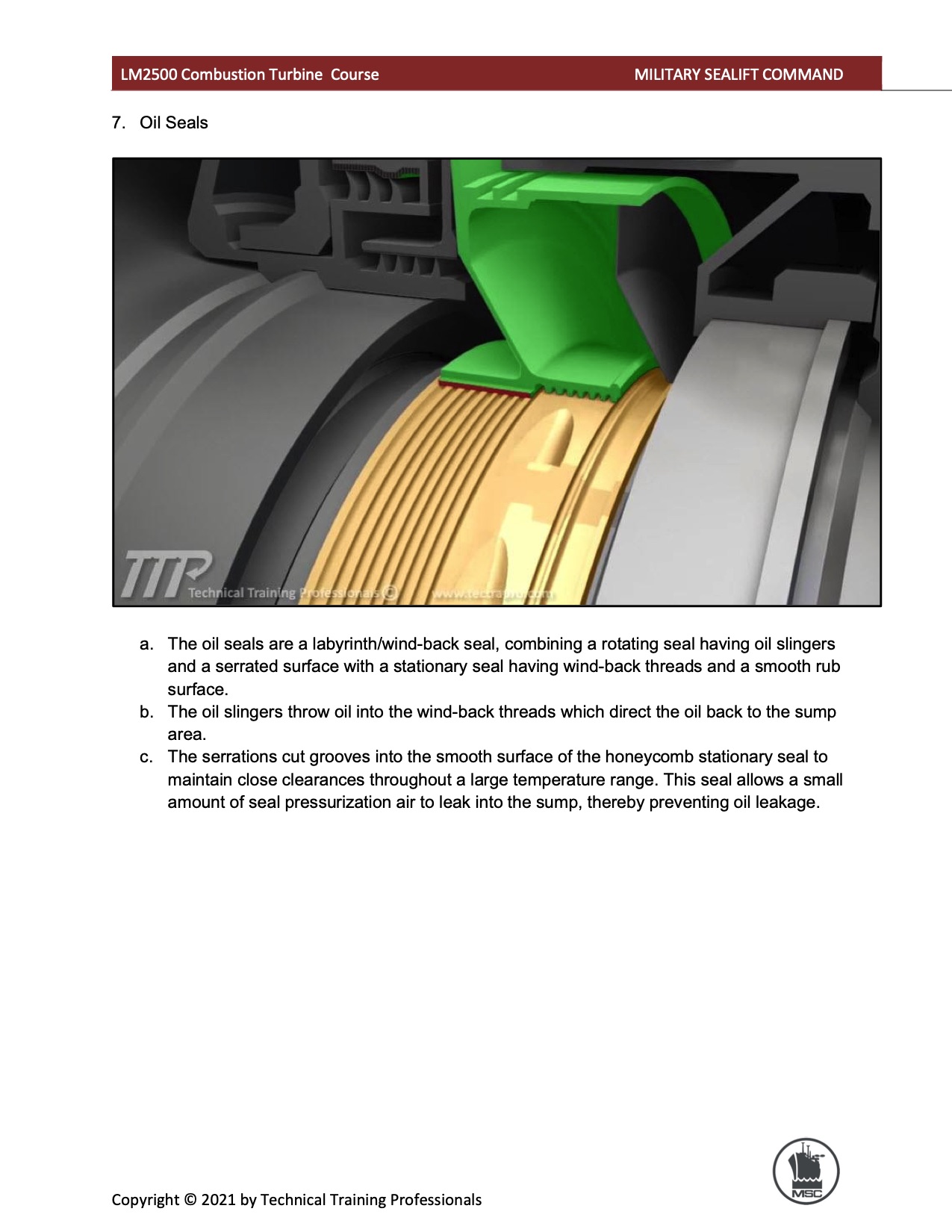

7. Oil Seals
a. b. c. The oil seals are a labyrinth/wind-back seal, combining a rotating seal having oil slingers
and a serrated surface with a stationary seal having wind-back threads and a smooth rub
surface.
The oil slingers throw oil into the wind-back threads which direct the oil back to the sump
area.
The serrations cut grooves into the smooth surface of the honeycomb stationary seal to
maintain close clearances throughout a large temperature range. This seal allows a small
amount of seal pressurization air to leak into the sump, thereby preventing oil leakage.
