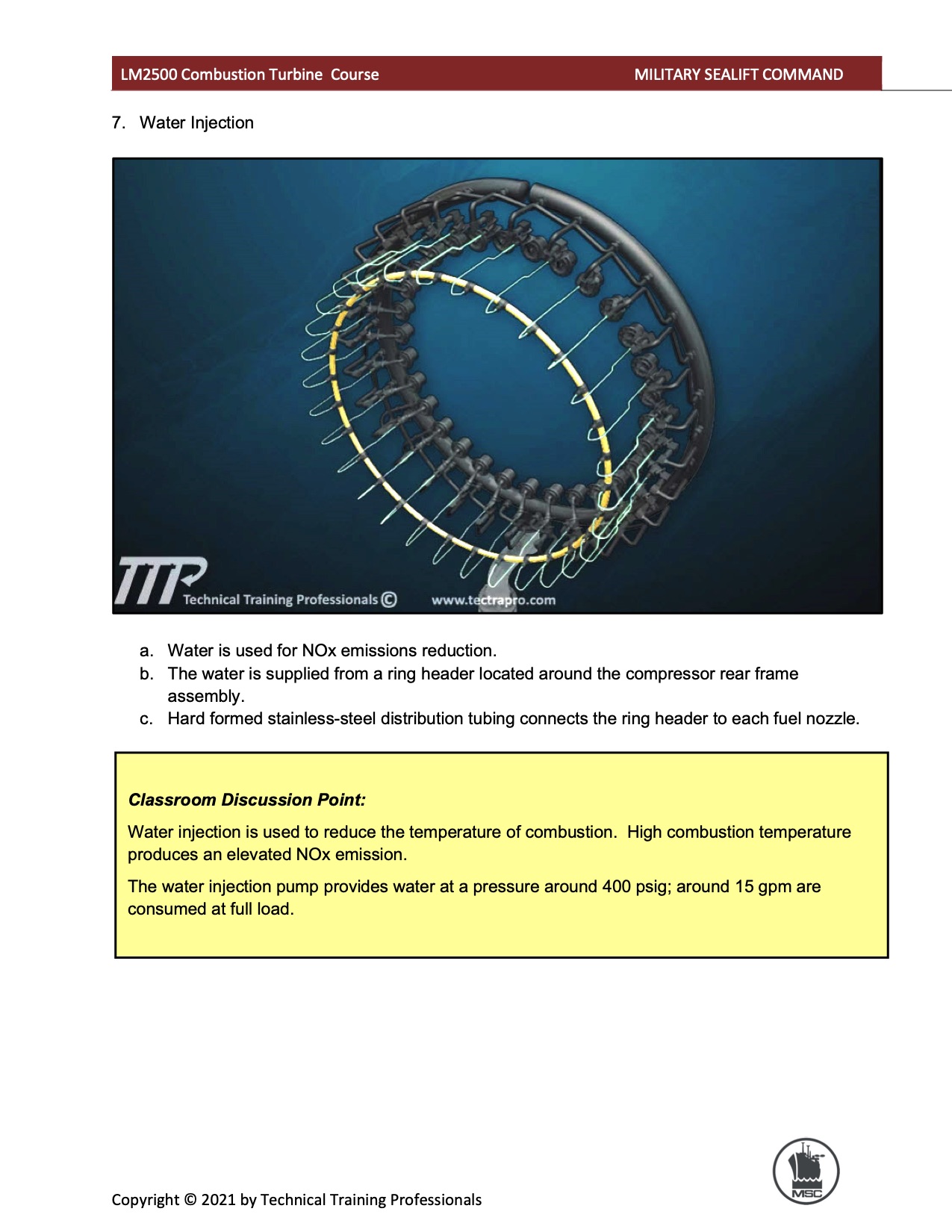

LM2500 Combustion Turbine Course MILITARY SEALIFT COMMAND
7. Water Injection
a. b. c. Water is used for NOx emissions reduction.
The water is supplied from a ring header located around the compressor rear frame
assembly.
Hard formed stainless-steel distribution tubing connects the ring header to each fuel nozzle.
Classroom Discussion Point:
Water injection is used to reduce the temperature of combustion. High combustion temperature
produces an elevated NOx emission.
The water injection pump provides water at a pressure around 400 psig; around 15 gpm are
consumed at full load.
Copyright © 2021 by Technical Training Professionals
