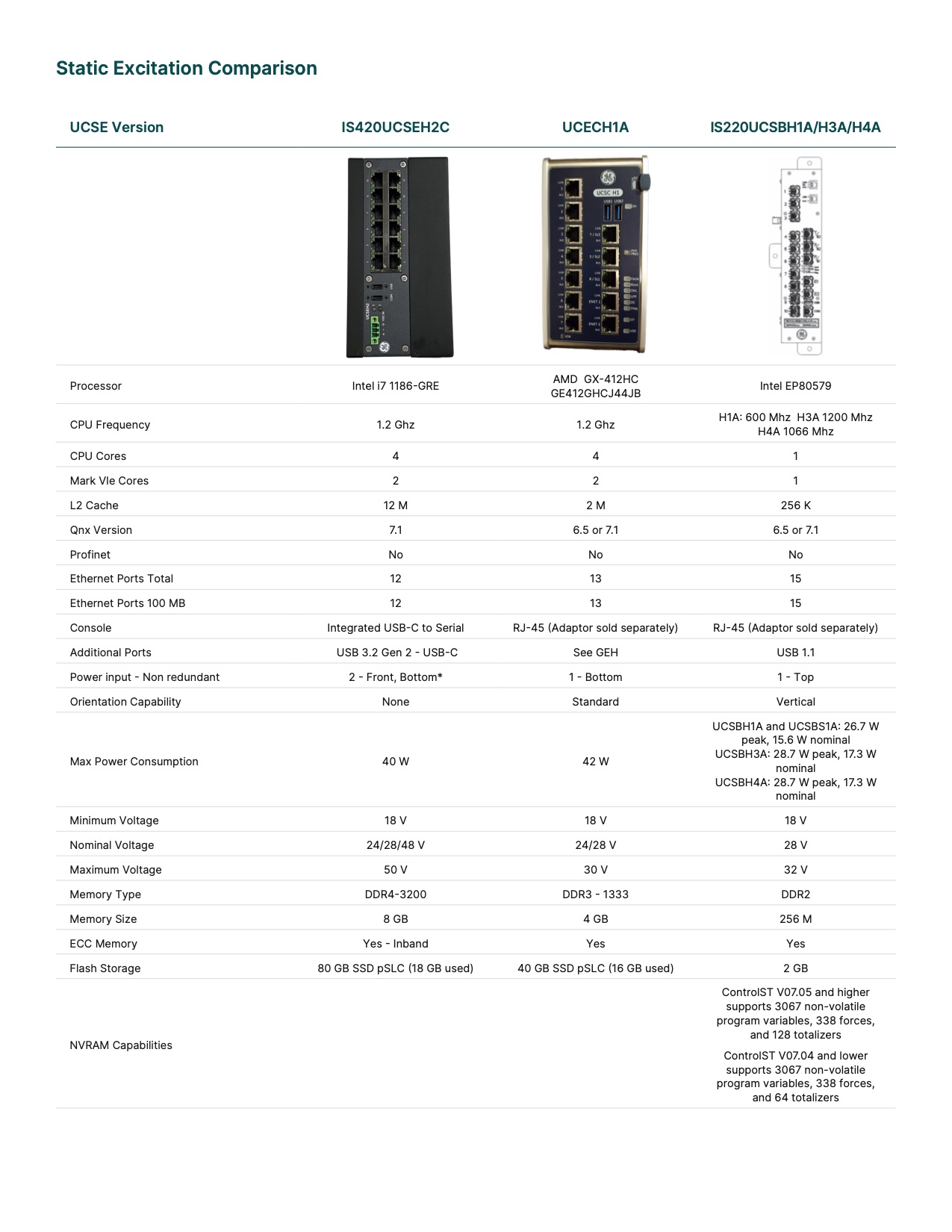

Page | 007 Static Excitation Comparison
UCSE Version IS420UCSEH2C UCECH1A IS220UCSBH1A/H3A/H4A
Processor Intel i7 1186-GRE AMD GX-412HC
GE412GHCJ44JB Intel EP80579
CPU Frequency 1.2 Ghz 1.2 Ghz H1A: 600 Mhz H3A 1200 Mhz
H4A 1066 Mhz
CPU Cores 4 4 1
Mark VIe Cores 2 2 1
L2 Cache 12 M 2 M 256 K
Qnx Version 7.1 6.5 or 7.1 6.5 or 7.1
Profinet No No No
Ethernet Ports Total 12 13 15
Ethernet Ports 100 MB 12 13 15
Console Integrated USB-C to Serial RJ-45 (Adaptor sold separately) RJ-45 (Adaptor sold separately)
Additional Ports USB 3.2 Gen 2 - USB-C See GEH USB 1.1
Power input - Non redundant 2 - Front, Bottom* 1 - Bottom 1 - Top
Orientation Capability None Standard Vertical
Max Power Consumption 40 W 42 W
UCSBH1A and UCSBS1A: 26.7 W
peak, 15.6 W nominal
UCSBH3A: 28.7 W peak, 17.3 W
nominal
UCSBH4A: 28.7 W peak, 17.3 W
nominal
Minimum Voltage 18 V 18 V 18 V
Nominal Voltage 24/28/48 V 24/28 V 28 V
Maximum Voltage 50 V 30 V 32 V
Memory Type DDR4-3200 DDR3 - 1333 DDR2
Memory Size 8 GB 4 GB 256 M
ECC Memory Yes - Inband Yes Yes
Flash Storage 80 GB SSD pSLC (18 GB used) 40 GB SSD pSLC (16 GB used) 2 GB
NVRAM Capabilities
ControlST V07.05 and higher
supports 3067 non-volatile
program variables, 338 forces,
and 128 totalizers
ControlST V07.04 and lower
supports 3067 non-volatile
program variables, 338 forces,
and 64 totalizers |
