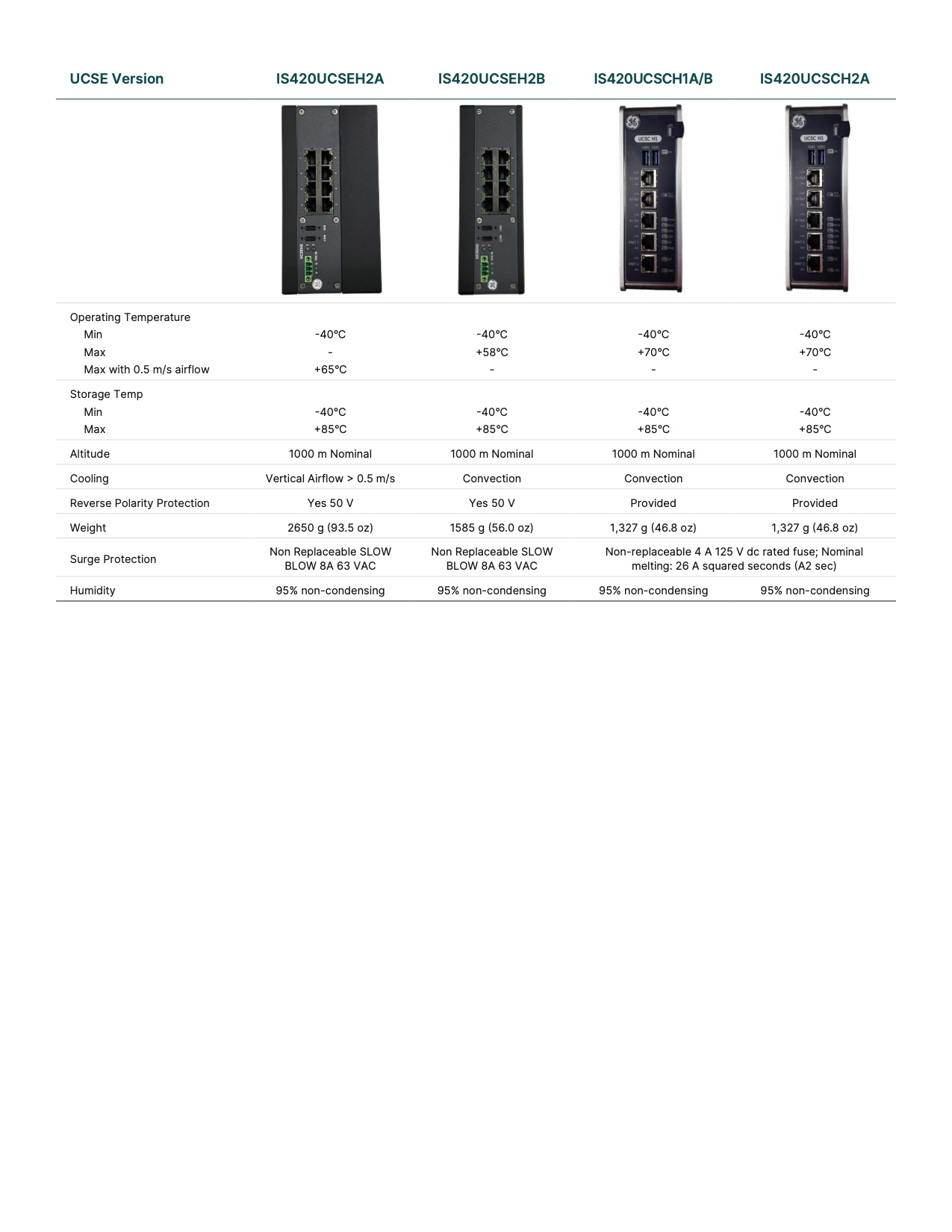

Page | 004 UCSE Version IS420UCSEH2A IS420UCSEH2B IS420UCSCH1A/B IS420UCSCH2A
Operating Temperature
Min -40°C -40°C -40°C -40°C
Max - +58°C +70°C +70°C
Max with 0.5 m/s airflow +65°C- - -
Storage Temp
Min -40°C -40°C -40°C -40°C
Max +85°C +85°C +85°C +85°C
Altitude 1000 m Nominal 1000 m Nominal 1000 m Nominal 1000 m Nominal
Cooling Vertical Airflow > 0.5 m/s Convection Convection Convection
Reverse Polarity Protection Yes 50 V Yes 50 V Provided Provided
Weight 2650 g (93.5 oz) 1585 g (56.0 oz) 1,327 g (46.8 oz) 1,327 g (46.8 oz)
Surge Protection Non Replaceable SLOW
BLOW 8A 63 VAC
Non Replaceable SLOW
BLOW 8A 63 VAC
Non-replaceable 4 A 125 V dc rated fuse; Nominal
melting: 26 A squared seconds (A2 sec)
Humidity 95% non-condensing 95% non-condensing 95% non-condensing 95% non-condensing |
