Text from PDF Page: 213

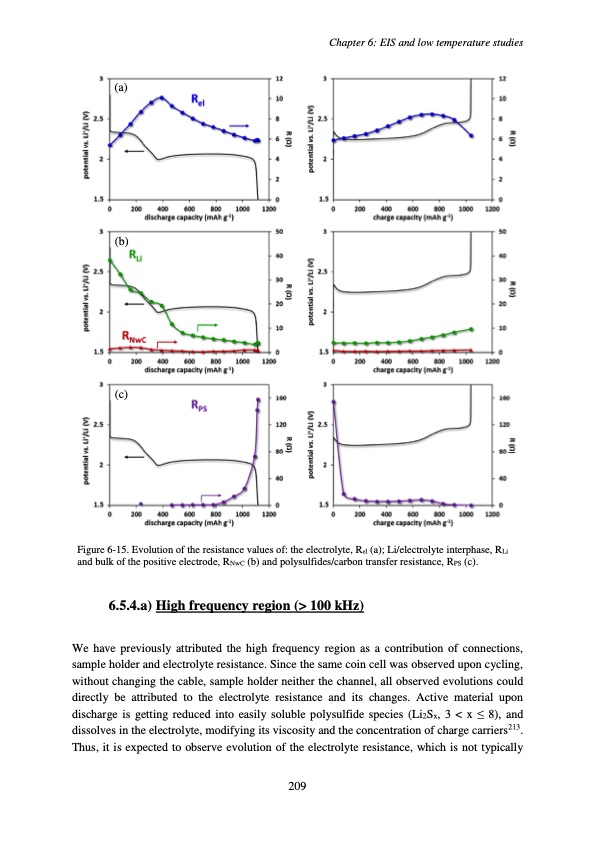

(a) (b) (c) Figure 6-15. Evolution of the resistance values of: the electrolyte, Rel (a); Li/electrolyte interphase, RLi and bulk of the positive electrode, RNwC (b) and polysulfides/carbon transfer resistance, RPS (c). 6.5.4.a) High frequency region (> 100 kHz) We have previously attributed the high frequency region as a contribution of connections, sample holder and electrolyte resistance. Since the same coin cell was observed upon cycling, without changing the cable, sample holder neither the channel, all observed evolutions could directly be attributed to the electrolyte resistance and its changes. Active material upon discharge is getting reduced into easily soluble polysulfide species (Li2Sx, 3 < x ≤ 8), and dissolves in the electrolyte, modifying its viscosity and the concentration of charge carriers213. Thus, it is expected to observe evolution of the electrolyte resistance, which is not typically Chapter 6: EIS and low temperature studies 209PDF Image | Accumulateur Lithium Soufre
