PDF Publication Title:
Text from PDF Page: 018

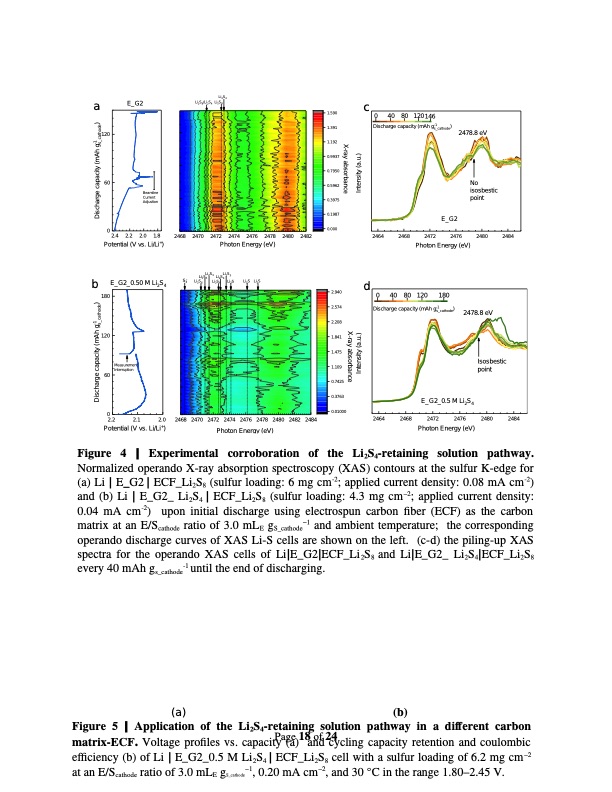

a E_G2 Beamline Current Adjustion Li2S4 Li2S8/Li2S4 Li2S8 c b 60 E_G2_0.50 M Li S 24 Measurement Interruption - S3 Li2S4 Li2S6 Li2S4 Li2S6 Li2S Li2S d 120 60 2478.8 eV No isosbestic point E_G2 2464 2468 2472 2476 2480 2484 Photon Energy (eV) 0 Potential (V vs. Li/Li+) 180 120 2.940 2.574 2.208 1.841 1.475 1.109 0.7425 0.3763 0.01000 0 40 80 120 180 Discharge capacity (mAh g-1 ) 2.4 2.2 2.0 1.8 2468 2470 2472 2474 2476 2478 2480 2482 Photon Energy (eV) 0 2.2 2.1 2464 2468 E_G2_0.5 M Li2S4 2472 2476 Photon Energy (eV) Isosbestic point 2480 2484 Li2S3 Li2S3 Li2S 2.0 2468 2470 2472 2474 2476 2478 2480 2482 2484 Potential (V vs. Li/Li+) Photon Energy (eV) Figure 4 ǀ Experimental corroboration of the Li2S4-retaining solution pathway. Normalized operando X-ray absorption spectroscopy (XAS) contours at the sulfur K-edge for (a) Li ǀ E_G2 ǀ ECF_Li2S8 (sulfur loading: 6 mg cm-2; applied current density: 0.08 mA cm-2) and (b) Li ǀ E_G2_ Li2S4 ǀ ECF_Li2S8 (sulfur loading: 4.3 mg cm−2; applied current density: 0.04 mA cm-2) upon initial discharge using electrospun carbon fiber (ECF) as the carbon matrix at an E/Scathode ratio of 3.0 mLE gS_cathode−1 and ambient temperature; the corresponding operandodischargecurvesofXASLi-Scellsareshownontheleft. (c-d)thepiling-upXAS spectra for the operando XAS cells of LiǀE_G2ǀECF_Li2S8 and LiǀE_G2_ Li2S4ǀECF_Li2S8 every 40 mAh gs_cathode-1 until the end of discharging. (a) (b) Figure 5 ǀ Application of the Li2S4-retaining solution pathway in a different carbon Page 18 of 24 matrix-ECF. Voltage profiles vs. capacity (a) and cycling capacity retention and coulombic efficiency (b) of Li ǀ E_G2_0.5 M Li2S4 ǀ ECF_Li2S8 cell with a sulfur loading of 6.2 mg cm−2 at an E/Scathode ratio of 3.0 mLE g −1, 0.20 mA cm−2, and 30 °C in the range 1.80–2.45 V. S_cathode 1.590 1.391 1.192 0.9937 0.7950 0.5962 0.3975 0.1987 0.000 0 40 80 120146 -1 Discharge capacity (mAh gs_cathode) s_cathode 2478.8 eV X-ray absorbance X-ray absorbance Discharge capacity (mAh g-1 ) s_ cathode Discharge capacity (mAh g-1 ) s_ cathode Intensity (a.u.) Intensity (a.u.)PDF Image | A lithium-sulfur battery with a solution-mediated pathway
PDF Search Title:
A lithium-sulfur battery with a solution-mediated pathwayOriginal File Name Searched:
qt9bt5f7wt_noSplash_4e336387563ecb2106bd171b37448483.pdfDIY PDF Search: Google It | Yahoo | Bing
Sulfur Deposition on Carbon Nanofibers using Supercritical CO2 Sulfur Deposition on Carbon Nanofibers using Supercritical CO2. Gamma sulfur also known as mother of pearl sulfur and nacreous sulfur... More Info
CO2 Organic Rankine Cycle Experimenter Platform The supercritical CO2 phase change system is both a heat pump and organic rankine cycle which can be used for those purposes and as a supercritical extractor for advanced subcritical and supercritical extraction technology. Uses include producing nanoparticles, precious metal CO2 extraction, lithium battery recycling, and other applications... More Info
| CONTACT TEL: 608-238-6001 Email: greg@infinityturbine.com | RSS | AMP |
