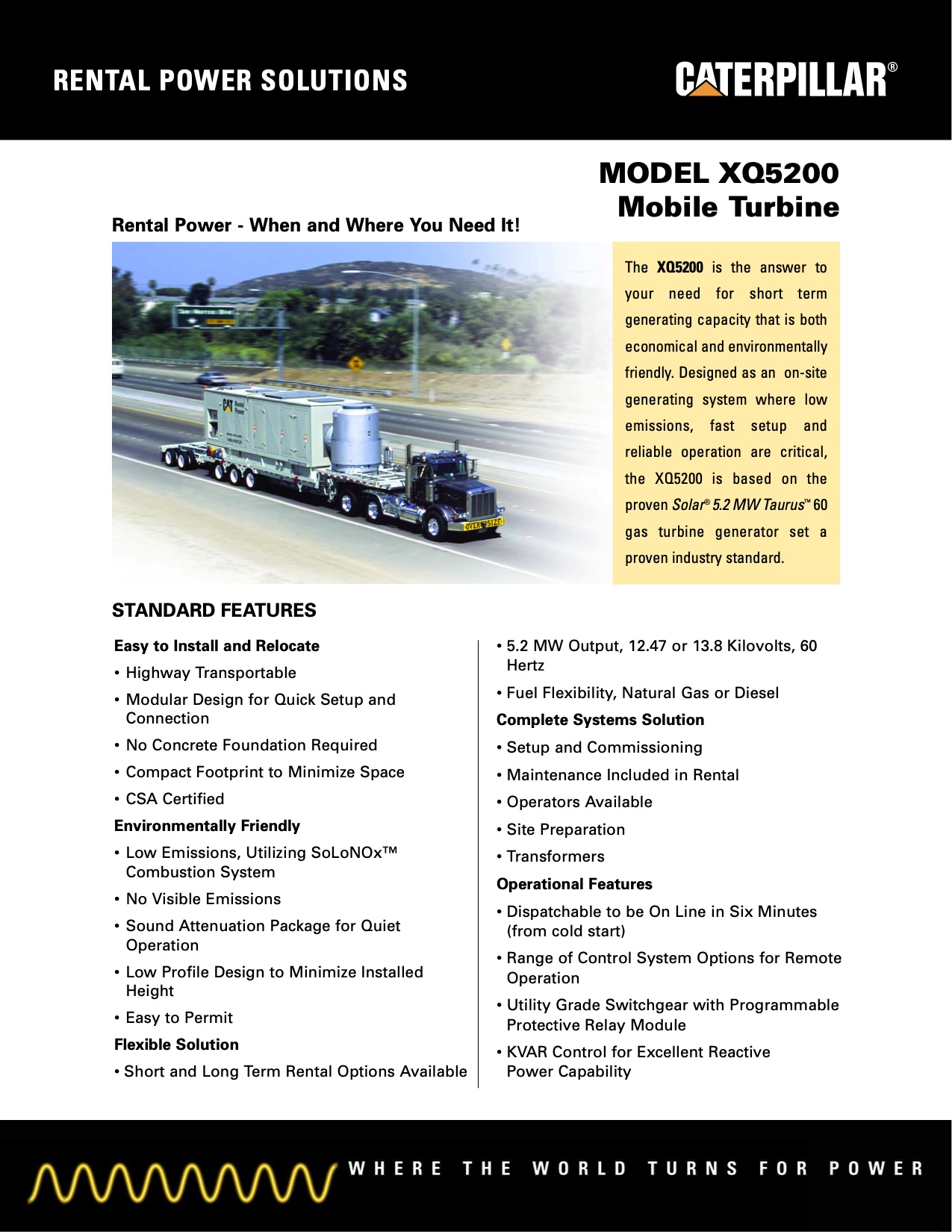

XQ5200 is based on theproven Solar 5.2 MW Taurus 60 gas turbine generator set

Page | 001

RENTAL POWER SOLUTIONS
MODEL XQ5200
Mobile Turbine
Rental Power - When and Where You Need It!
The XQ5200 is the answer to
your need for short term
generating capacity that is both
economical and environmentally
friendly. Designed as an on-site
generating system where low
emissions, fast setup and
reliable operation are critical,
the XQ5200 is based on the
proven Solar® 5.2 MW Taurus™ 60
gas turbine generator set a
proven industry standard.
STANDARD FEATURES
Easy to Install and Relocate
• Highway Transportable
• Modular Design for Quick Setup and
Connection
• No Concrete Foundation Required
• Compact Footprint to Minimize Space
• CSA Certified
Environmentally Friendly
• Low Emissions, Utilizing SoLoNOx™
Combustion System
• No Visible Emissions
• Sound Attenuation Package for Quiet
Operation
• Low Profile Design to Minimize Installed
Height
• Easy to Permit
Flexible Solution
• Short and Long Term Rental Options Available
• 5.2 MW Output, 12.47 or 13.8 Kilovolts, 60
Hertz
• Fuel Flexibility, Natural Gas or Diesel
Complete Systems Solution
• Setup and Commissioning
• Maintenance Included in Rental
• Operators Available
• Site Preparation
• Transformers
Operational Features
• Dispatchable to be On Line in Six Minutes
(from cold start)
• Range of Control System Options for Remote
Operation
• Utility Grade Switchgear with Programmable
Protective Relay Module
• KVAR Control for Excellent Reactive
Power Capability
