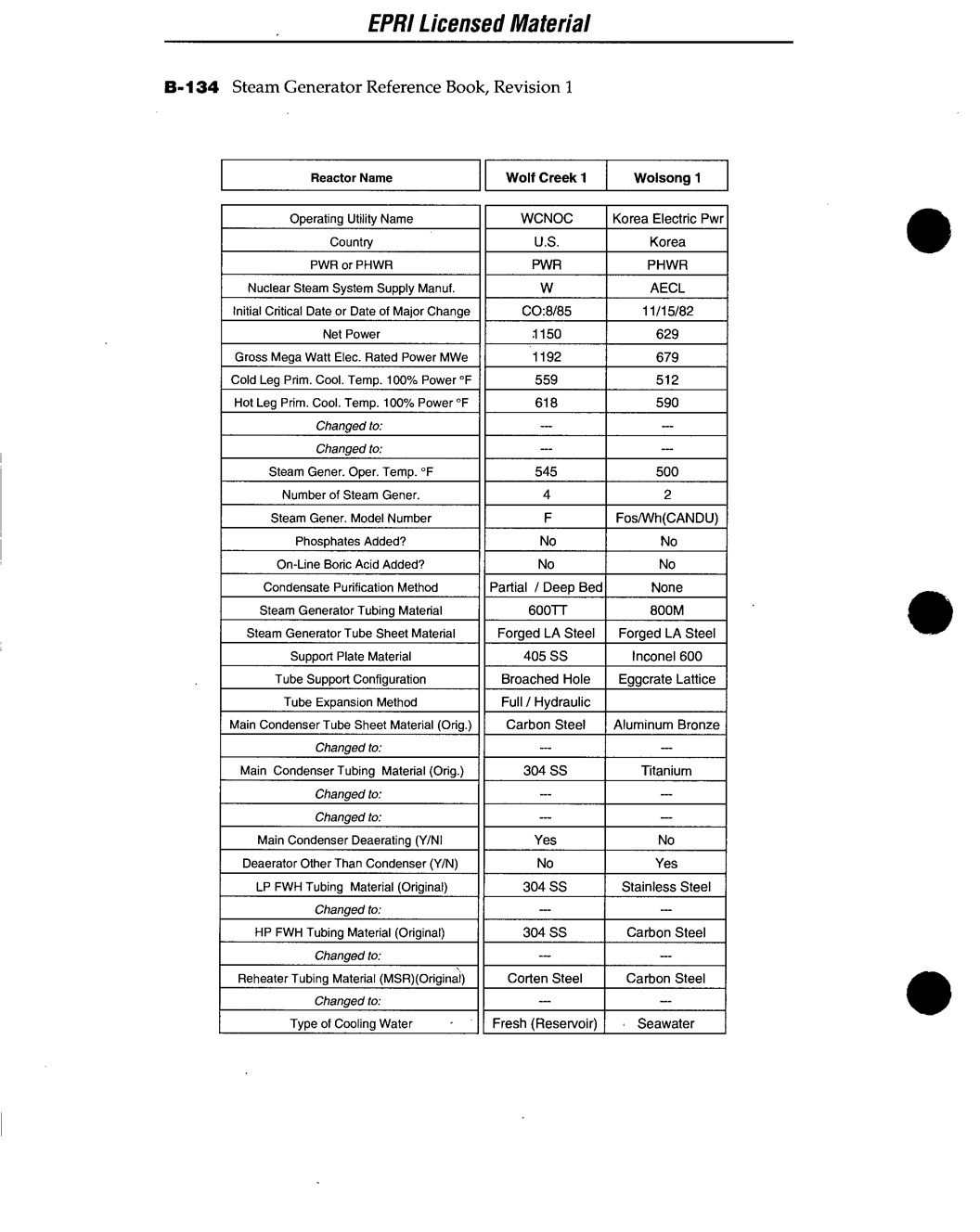

Page | 942 EPRI Licensed Material
B-134 Steam Generator Reference Book, Revision I
Reactor Name Wolf Creek 1 Wolsong 1
Operating Utility Name WCNOC Korea Electric Pwr
Country U.S. Korea
PWR or PHWR PWR PHWR
Nuclear Steam System Supply Manuf. W AECL
Initial Critical Date or Date of Major Change CO:8/85 11/15/82
Net Power 1150 629
Gross Mega Watt Elec. Rated Power MWe 1192 679
Cold Leg Prim. Cool. Temp. 100% Power OF 559 512
Hot Leg Prim. Cool. Temp. 100% Power 'F 618 590
Changed to: --...
Changed to: ......
Steam Gener. Oper. Temp. IF 545 500
Number of Steam Gener. 4 2
Steam Gener. Model Number F Fos/Wh(CANDU)
Phosphates Added? No No
On-Line Boric Acid Added? No No
Condensate Purification Method Partial / Deep Bed None
Steam Generator Tubing Material 600TT 800M
Steam Generator Tube Sheet Material Forged LA Steel Forged LA Steel
Support Plate Material 405 SS Inconel 600
Tube Support Configuration Broached Hole Eggcrate Lattice
Tube Expansion Method Full / Hydraulic
Main Condenser Tube Sheet Material (Orig.) Carbon Steel Aluminum Bronze
Changed to: ---..
Main Condenser Tubing Material (Orig.) 304 SS Titanium
Changed to: ......
Changed to: ---..
Main Condenser Deaerating (Y/NI Yes No
Deaerator Other Than Condenser (Y/N) No Yes
LP FWH Tubing Material (Original) 304 SS Stainless Steel
Changed to:
HP FWH Tubing Material (Original)
304 SS Carbon Steel
Changed to:
Reheater Tubing Material (MSR)(Originai)
Corten Steel Carbon Steel
Changed to:
Type of Cooling Water
Fresh (Reservoir) , Seawater |
