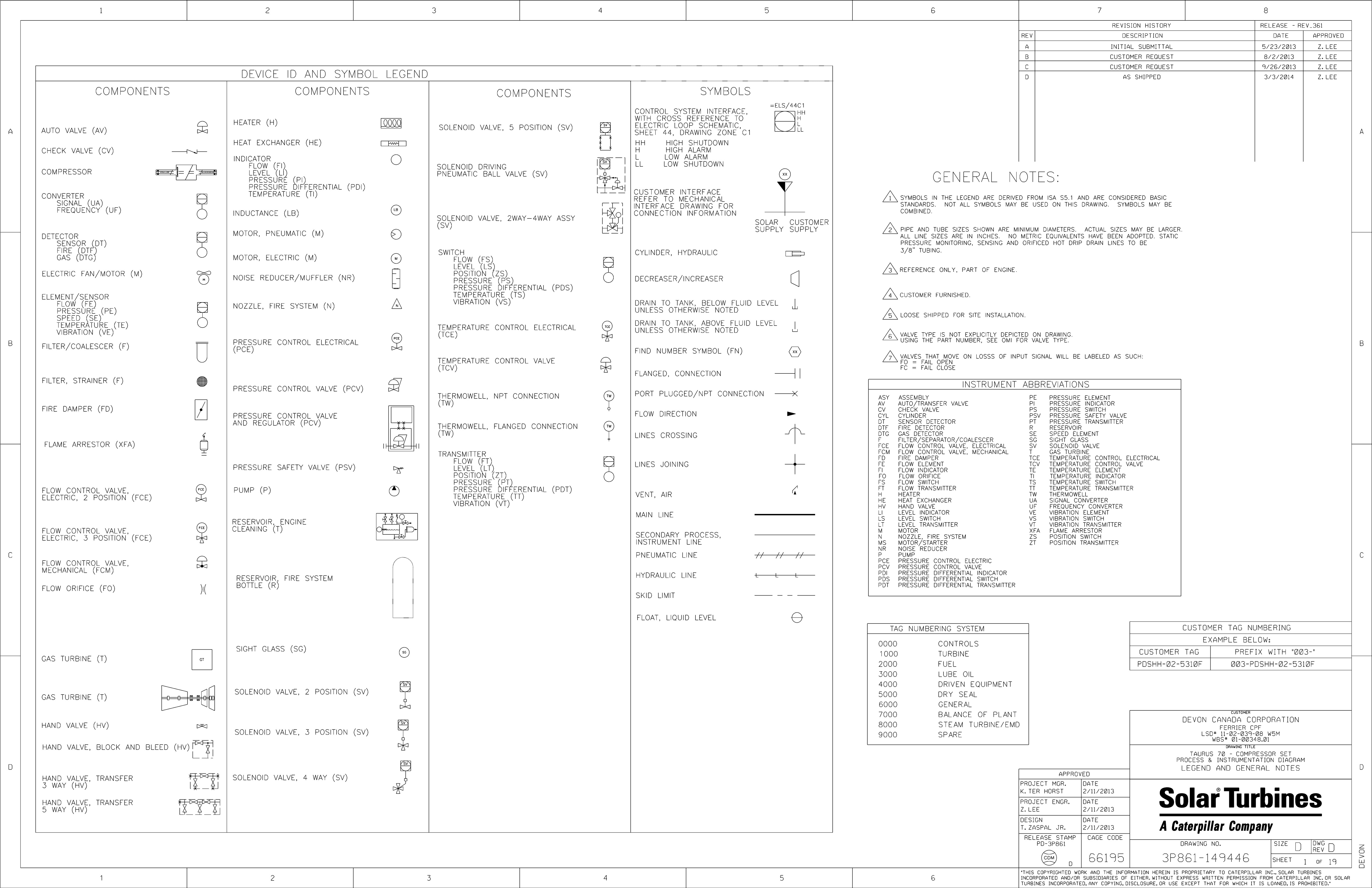

TAURUS 70 COMPRESSOR SET PROCESS INSTRUMENTATION DIAGRAM

Page | 001

A
B
c
D
1 2 3 4 5
6 7 8
REVISION HISTORY RELEASE - REV _351
REV DESCRIPTION DATE APPROVED
A INITIAL SUBMITTAL 5/23/2013
Z. LEE
B CUSTOMER REQUEST 8/2/2013
Z. LEE
,--------------------------------------------------------------------------------------------------
DEVICE ID AND SYMBOL LEGEND
c CUSTOMER REQUEST 9/25/2013
Z. LEE
D AS SHIPPED 3/3/2014
Z. LEE
COMPONENTS
AUTO VALVE (AV)
CHECK VALVE (CV)
COMPRESSOR
11.,---· :1 f : ........ II
CONVERTER
SIGNAL (UA)
FREQUENCY (UF)
DETECTOR
SENSOR (DT)
FIRE (DTF')
GAS (DTG;
ELECTRIC FAN/MOTOR (M)
ELEMENT /SENSOR
FLOW (FE)
PRESSURE (PE)
SPEED (SE)
TEMPERATURE (TE)
VIBRATION (VE)
FIL TER/COALESCER (F)
FILTER, STRAINER (F)
FIRE DAMPER (FD)
FLAME ARRESTOR (XFA)
FLOW CONTROL VALVE,
ELECTRIC, 2 POSITION (FCE)
FLOW CONTROL VALVE,
ELECTRIC, 3 POSITION (FCE)
FLOW CONTROL VALVE,
MECHANICAL (FCM)
FLOW ORIFICE (FO)
GAS TURBINE (T)
GAS TURBINE (T)
HAND VALVE (HV)
0
•
HAND VALVE, BLOCK AND BLEED (HV) ~
LJ'I
HAND VALVE, TRANSFER
3 WAY (HV)
HAND VALVE, TRANSFER
5 WAY (HV)
COMPONENTS
HEATER (H)
HEAT EXCHANGER (HE)
INDICATOR
FLOW (FI)
LEVEL (LI)
PRESSURt: (PI)
PRESSURE DIFFERENTIAL (POl)
TEMPERATURE (TI)
INDUCTANCE (LB)
MOTOR, PNEUMATIC (M)
MOTOR, ELECTRIC (M)
NOISE REDUCER/MUFFLER (NR)
NOZZLE, FIRE SYSTEM (N)
PRESSURE CONTROL ELECTRICAL
(PCE)
PRESSURE CONTROL VALVE (PCV)
PRESSURE CONTROL VALVE
AND REGULATOR (PCV)
PRESSURE SAFETY VALVE (PSV)
PUMP (P)
RESERVOIR, ENGINE
CLEANING (T)
RESERVOIR, FIRE SYSTEM
BOTTLE (R)
SIGHT GLASS (SG)
SOLENOID VALVE, 2 POSITION (SV)
SOLENOID VALVE, 3 POSITION (SV)
SOLENOID VALVE, 4 WAY (SV)
I EW0l I
0
I l$i I
COMPONENTS
SOLENOID VALVE, 5 POSITION (SV)
SOLENOID DRIVING
PNEUMATIC BALL VALVE (SV)
SOLENOID VALVE, 2WAY-4WAY ASSY
(SV)
SWITCH
FLOW (FS)
LEVEL (LS)
POSITION (ZS)
PRESSURE (PS)
PRESSURE DIFFERENTIAL (PDS)
TEMPERATURE (TS)
VIBRATION (VS)
TEMPERATURE CONTROL ELECTRICAL
(TCE)
TEMPERATURE CONTROL VALVE
(TCV)
THERMOWELL, NPT CONNECTION
(TW)
THERMOWELL, FLANGED CONNECTION
(TW)
TRANSMITTER
FLOW (FTI
LEVEL (L T)
POSITION (ZT)
PRESSURE (PT)
PRESSURE DIFI"ERENTIAL (PDT)
TEMPERATURE (TT)
VIBRATION (VT)
~
a
kfol
~
SYMBOLS
CONTROL SYSTEM INTERFACE,
WITH CROSS REFERENCE TO
ELECTRIC LOOP SCHEMATIC,
SHEET 44, DRAWING ZONE Cl
HH HIGH SHUTDOWN
H HIGH ALARM
L LOW ALARM
LL LOW SHUTDOWN
CUSTOMER INTERFACE
REFER TO MECHANICAL
INTERFACE DRAWING FOR
CONNECTION INFORMATION
CYLINDER, HYDRAULIC
DECREASER/INCREASER
C]
DRAIN TO TANK, BELOW FLUID LEVEL
UNLESS OTHERWISE NOTED l
DRAIN TO TANK, ABOVE FLUID LEVEL
UNLESS OTHERWISE NOTED
FIND NUMBER SYMBOL (FN)
FLANGED, CONNECTION
PORT PLUGGED/NPT CONNECTION
FLOW DIRECTION
LINES CROSSING
LINES JOINING
VENT, AIR
MAIN LINE
SECONDARY PROCESS,
INSTRUMENT LINE
PNEUMATIC LINE U I I I
HYDRAULIC LINE '
SKID LIMIT ----
FLOAT, LIQUID LEVEL e
=ELS/44C1 DtH
DLL
A
SOLAR CUSTOMER
SUPPLY SUPPLY
GENERAL NOTES:
ffi SYMBOLS IN THE LEGEND ARE DERIVED FROM ISA S5.1 AND ARE CONSIDERED BASIC
STANDARDS. NOT ALL SYMBOLS MAY BE USED ON THIS DRAWING. SYMBOLS MAY BE
COMBINED.
ffi PIPE AND TUBE SIZES SHOWN ARE MINIMUM DIAMETERS. ACTUAL SIZES MAY BE LARGER.
ALL LINE SIZES ARE IN INCHES. NO METRIC EQUIVALENTS HAVE BEEN ADOPTED. STATIC
PRESSURE MONITORING, SENSING AND ORIFICED HOT DRIP DRAIN LINES TO BE
3/8" TUBING.
& REFERENCE ONLY, PART OF ENGINE.
& CUSTOMER FURNISHED.
& LOOSE SHIPPED FOR SITE INSTALLATION.
& VALVE TYPE IS NOT EXPLICITLY DEPICTED ON DRAWING.
USING THE PART NUMBER, SEE OMI FOR VALVE TYPE.
& VALVES THAT MOVE ON LOSSS OF INPUT SIGNAL WILL BE LABELED AS SUCH:
FO = FAIL OPEN
FC = FAIL CLOSE
B
/
....
-t-
+
INSTRUMENT ABBREVIATIONS
ASY ASSEMBLY PE PRESSURE ELEMENT
AV AUTO/TRANSFER VALVE PI PRESSURE INDICATOR
CV CHECK VALVE PS PRESSURE SWITCH
CYL CYLINDER PSV PRESSURE SAFETY VALVE
DT SENSOR DETECTOR PT PRESSURE TRANSMITTER
DTF FIRE DETECTOR R RESERVOIR
DTG GAS DETECTOR SE SPEED ELEMENT
F FILTER/SEPARATOR/COALESCER SG SIGHT GLASS
FCE FLOW CONTROL VALVE. ELECTRICAL SV SOLENOID VALVE
FCM FLOW CONTROL VALVE. MECHANICAL T GAS TURBINE
FD FIRE DAMPER TCE TEMPERATURE CONTROL ELECTRICAL
FE FLOW ELEMENT TCV TEMPERATURE CONTROL VALVE
Fl FLOW INDICATOR TE TEMPERATURE ELEMENT
FO FLOW ORIFICE Tl TEMPERATURE INDICATOR
FS FLOW SWITCH TS TEMPERATURE SWITCH
FT FLOW TRANSMITTER TT TEMPERATURE TRANSMITTER
H HEATER TW THERMOWELL
HE HEAT EXCHANGER UA SIGNAL CONVERTER
HV HAND VALVE UF FREQUENCY CONVERTER
Ll LEVEL INDICATOR VE VIBRATION ELEMENT
LS LEVEL SWITCH VS VIBRATION SWITCH
L T LEVEL TRANSMITTER VT VIBRATION TRANSMITTER
M MOTOR XFA FLAME ARRESTOR
N NOZZLE. FIRE SYSTEM ZS POSITION SWITCH
MS MOTOR/STARTER ZT POSITION TRANSMITTER
NR NOISE REDUCER
P PUMP
PCE PRESSURE CONTROL ELECTRIC
PCV PRESSURE CONTROL VALVE
POl PRESSURE DIFFERENTIAL INDICATOR
PDS PRESSURE DIFFERENTIAL SWITCH
PDT PRESSURE DIFFERENTIAL TRANSMITTER
c
TAG NUMBERING SYSTEM CUSTOMER TAG NUMBERING
EXAMPLE BELOW:
0000
1000
2000
3000
4000
5000
6000
7000
8000
9000
CONTROLS
TURBINE
FUEL
LUBE OIL
DRIVEN EQUIPMENT
DRY SEAL
GENERAL
BALANCE OF PLANT
STEAM TURBINE/EMD
SPARE
DATE
2/11/2013
RELEASE STAMP
PD-3P861
@ D CAGE CODE
66195 CUSTOMER TAG PREFIX WITH "003-"
PDSHH-02-5310F 003-PDSHH-02-5310F
CUSTOMER
DEVON CANADA CORPORATION
FERRIER CPF
LSD" 11-02-039-08 W5M
WBS" 01-00348.01
DRAWING TITLE
TAURUS 70 - COMPRESSOR SET
PROCESS & INSTRUMENTATION DIAGRAM
LEGEND AND GENERAL NOTES
APPROVED
DESIGN
T. ZASPAL JR.
2
3
4
5
D
PROJECT MGR. K. TER HORST Z. LEE DATE
Solar Turbines PROJECT ENGR. DATE
2/11/2013 2111/2013
A Caterpillar Company
z
0
>
w
0
'THIS COPYRIGHTED WORK AND THE INFORMATION HEREIN IS PROPRIETARY TO CATERPILLAR INC .. SOLAR TURBINES
INCORPORATED AND/OR SUBSIOIARIES OF EITHER. WITHOUT EXPRESS WRITTEN PERMISSION FROM CATERPILLAR INC. OR SOLAR
TURBINES INCORPORATED, ANY COPYING, DISCLOSURE, OR USE EXCEPT THAT FOR WHICH IT IS LOANED. IS PROHIBITED."
DRAWING NO. 3P861-149446 SIZE D ~~~~ D
SHEET 1 OF 19
