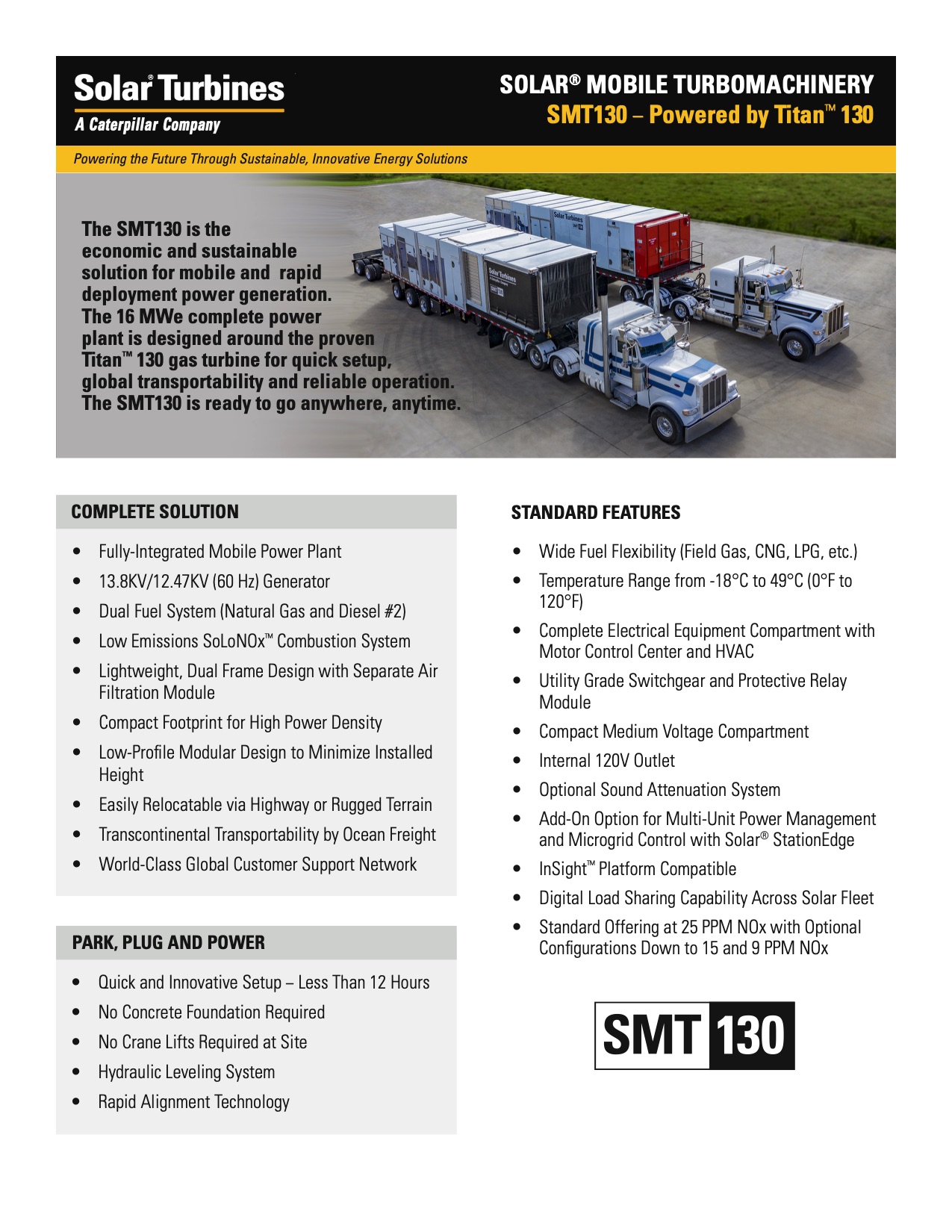

SOLAR MOBILE TURBOMACHINERY SMT130 Powered by Titan 130

Page | 001

SOLAR® MOBILE TURBOMACHINERY
SMT130 − Powered by Titan™ 130
Powering the Future Through Sustainable, Innovative Energy Solutions
The SMT130 is the
economic and sustainable
solution for mobile and rapid
deployment power generation.
The 16 MWe complete power
plant is designed around the proven
Titan™ 130 gas turbine for quick setup,
global transportability and reliable operation.
The SMT130 is ready to go anywhere, anytime.
COMPLETE SOLUTION
•
•
•
•
•
•
•
•
•
•
Fully-Integrated Mobile Power Plant
13.8KV/12.47KV (60 Hz) Generator
Dual Fuel System (Natural Gas and Diesel #2)
Low Emissions SoLoNOx™ Combustion System
Lightweight, Dual Frame Design with Separate Air
Filtration Module
Compact Footprint for High Power Density
Low-Profile Modular Design to Minimize Installed
Height
Easily Relocatable via Highway or Rugged Terrain
Transcontinental Transportability by Ocean Freight
World-Class Global Customer Support Network
PARK, PLUG AND POWER
STANDARD FEATURES
•
•
•
•
•
•
•
•
•
•
•
Wide Fuel Flexibility (Field Gas, CNG, LPG, etc.)
Temperature Range from -18°C to 49°C (0°F to
120°F)
Complete Electrical Equipment Compartment with
Motor Control Center and HVAC
Utility Grade Switchgear and Protective Relay
Module
Compact Medium Voltage Compartment
Internal 120V Outlet
Optional Sound Attenuation System
Add-On Option for Multi-Unit Power Management
and Microgrid Control with Solar® StationEdge
InSight™ Platform Compatible
Digital Load Sharing Capability Across Solar Fleet
Standard Offering at 25 PPM NOx with Optional
Configurations Down to 15 and 9 PPM NOx
•
•
•
•
•
Quick and Innovative Setup − Less Than 12 Hours
No Concrete Foundation Required
No Crane Lifts Required at Site
Hydraulic Leveling System
Rapid Alignment Technology
