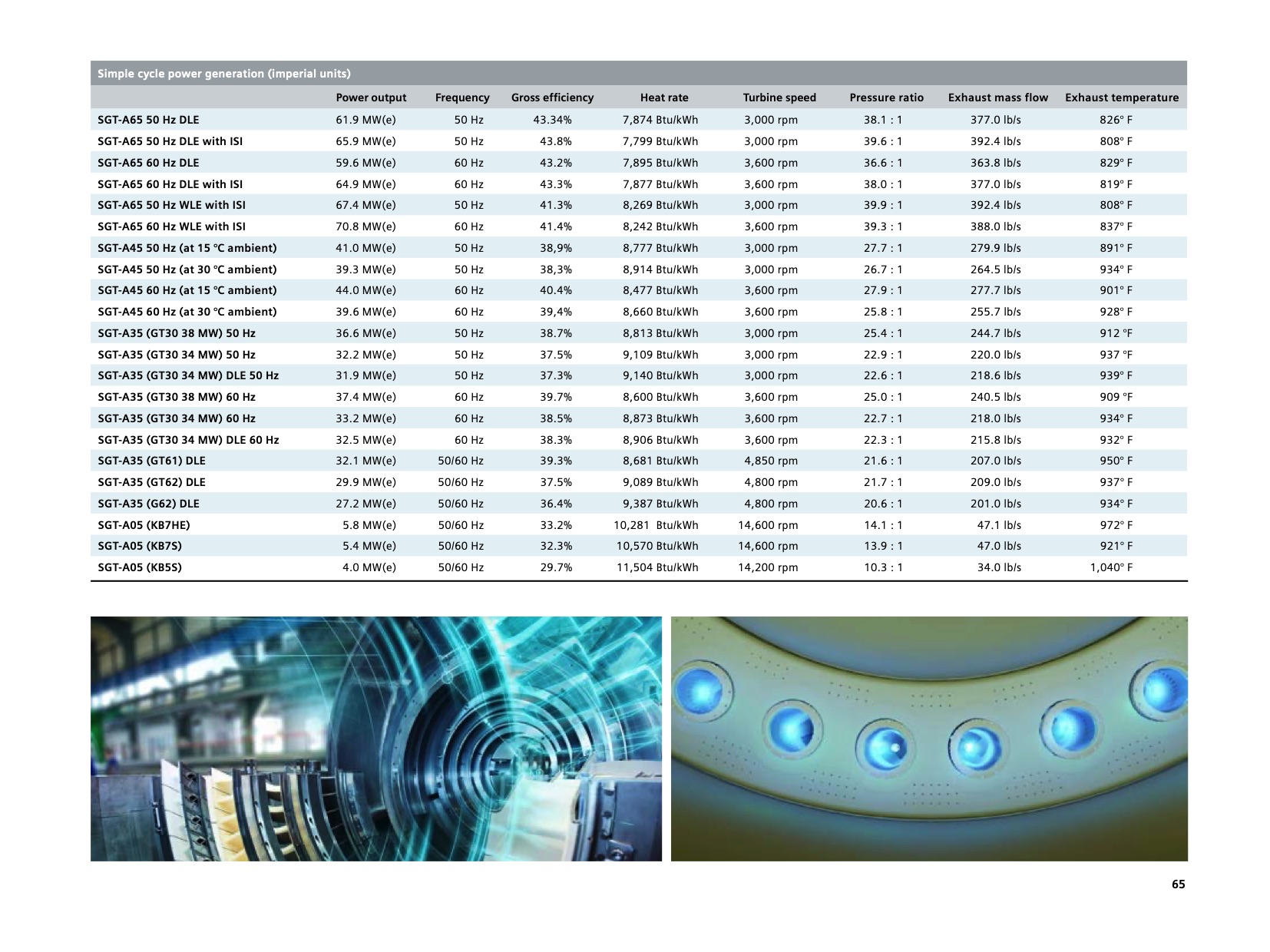

Page | 067 Simple cycle power generation (imperial units)
Power output Frequency Gross efficiency Heat rate Turbine speed Pressure ratio Exhaust mass flow Exhaust temperature
SGT-A65 50 Hz DLE 61.9 MW(e) 50 Hz 43.34% 7,874 Btu/kWh 3,000 rpm 38.1 : 1 377.0 lb/s 826° F
SGT-A65 50 Hz DLE with ISI 65.9 MW(e) 50 Hz 43.8% 7,799 Btu/kWh 3,000 rpm 39.6 : 1 392.4 lb/s 808° F
SGT-A65 60 Hz DLE 59.6 MW(e) 60 Hz 43.2% 7,895 Btu/kWh 3,600 rpm 36.6 : 1 363.8 lb/s 829° F
SGT-A65 60 Hz DLE with ISI 64.9 MW(e) 60 Hz 43.3% 7,877 Btu/kWh 3,600 rpm 38.0 : 1 377.0 lb/s 819° F
SGT-A65 50 Hz WLE with ISI 67.4 MW(e) 50 Hz 41.3% 8,269 Btu/kWh 3,000 rpm 39.9 : 1 392.4 lb/s 808° F
SGT-A65 60 Hz WLE with ISI 70.8 MW(e) 60 Hz 41.4% 8,242 Btu/kWh 3,600 rpm 39.3 : 1 388.0 lb/s 837° F
SGT-A45 50 Hz (at 15 °C ambient) 41.0 MW(e) 50 Hz 38,9% 8,777 Btu/kWh 3,000 rpm 27.7 : 1 279.9 lb/s 891° F
SGT-A45 50 Hz (at 30 °C ambient) 39.3 MW(e) 50 Hz 38,3% 8,914 Btu/kWh 3,000 rpm 26.7 : 1 264.5 lb/s 934° F
SGT-A45 60 Hz (at 15 °C ambient) 44.0 MW(e) 60 Hz 40.4% 8,477 Btu/kWh 3,600 rpm 27.9 : 1 277.7 lb/s 901° F
SGT-A45 60 Hz (at 30 °C ambient) 39.6 MW(e) 60 Hz 39,4% 8,660 Btu/kWh 3,600 rpm 25.8 : 1 255.7 lb/s 928° F
SGT-A35 (GT30 38 MW) 50 Hz 36.6 MW(e) 50 Hz 38.7% 8,813 Btu/kWh 3,000 rpm 25.4 : 1 244.7 lb/s 912 °F
SGT-A35 (GT30 34 MW) 50 Hz 32.2 MW(e) 50 Hz 37.5% 9,109 Btu/kWh 3,000 rpm 22.9 : 1 220.0 lb/s 937 °F
SGT-A35 (GT30 34 MW) DLE 50 Hz 31.9 MW(e) 50 Hz 37.3% 9,140 Btu/kWh 3,000 rpm 22.6 : 1 218.6 lb/s 939° F
SGT-A35 (GT30 38 MW) 60 Hz 37.4 MW(e) 60 Hz 39.7% 8,600 Btu/kWh 3,600 rpm 25.0 : 1 240.5 lb/s 909 °F
SGT-A35 (GT30 34 MW) 60 Hz 33.2 MW(e) 60 Hz 38.5% 8,873 Btu/kWh 3,600 rpm 22.7 : 1 218.0 lb/s 934° F
SGT-A35 (GT30 34 MW) DLE 60 Hz 32.5 MW(e) 60 Hz 38.3% 8,906 Btu/kWh 3,600 rpm 22.3 : 1 215.8 lb/s 932° F
SGT-A35 (GT61) DLE 32.1 MW(e) 50/60 Hz 39.3% 8,681 Btu/kWh 4,850 rpm 21.6 : 1 207.0 lb/s 950° F
SGT-A35 (GT62) DLE 29.9 MW(e) 50/60 Hz 37.5% 9,089 Btu/kWh 4,800 rpm 21.7 : 1 209.0 lb/s 937° F
SGT-A35 (G62) DLE 27.2 MW(e) 50/60 Hz 36.4% 9,387 Btu/kWh 4,800 rpm 20.6 : 1 201.0 lb/s 934° F
SGT-A05 (KB7HE) 5.8 MW(e) 50/60 Hz 33.2% 10,281 Btu/kWh 14,600 rpm 14.1 : 1 47.1 lb/s 972° F
SGT-A05 (KB7S) 5.4 MW(e) 50/60 Hz 32.3% 10,570 Btu/kWh 14,600 rpm 13.9 : 1 47.0 lb/s 921° F
SGT-A05 (KB5S) 4.0 MW(e) 50/60 Hz 29.7% 11,504 Btu/kWh 14,200 rpm 10.3 : 1 34.0 lb/s 1,040° F
