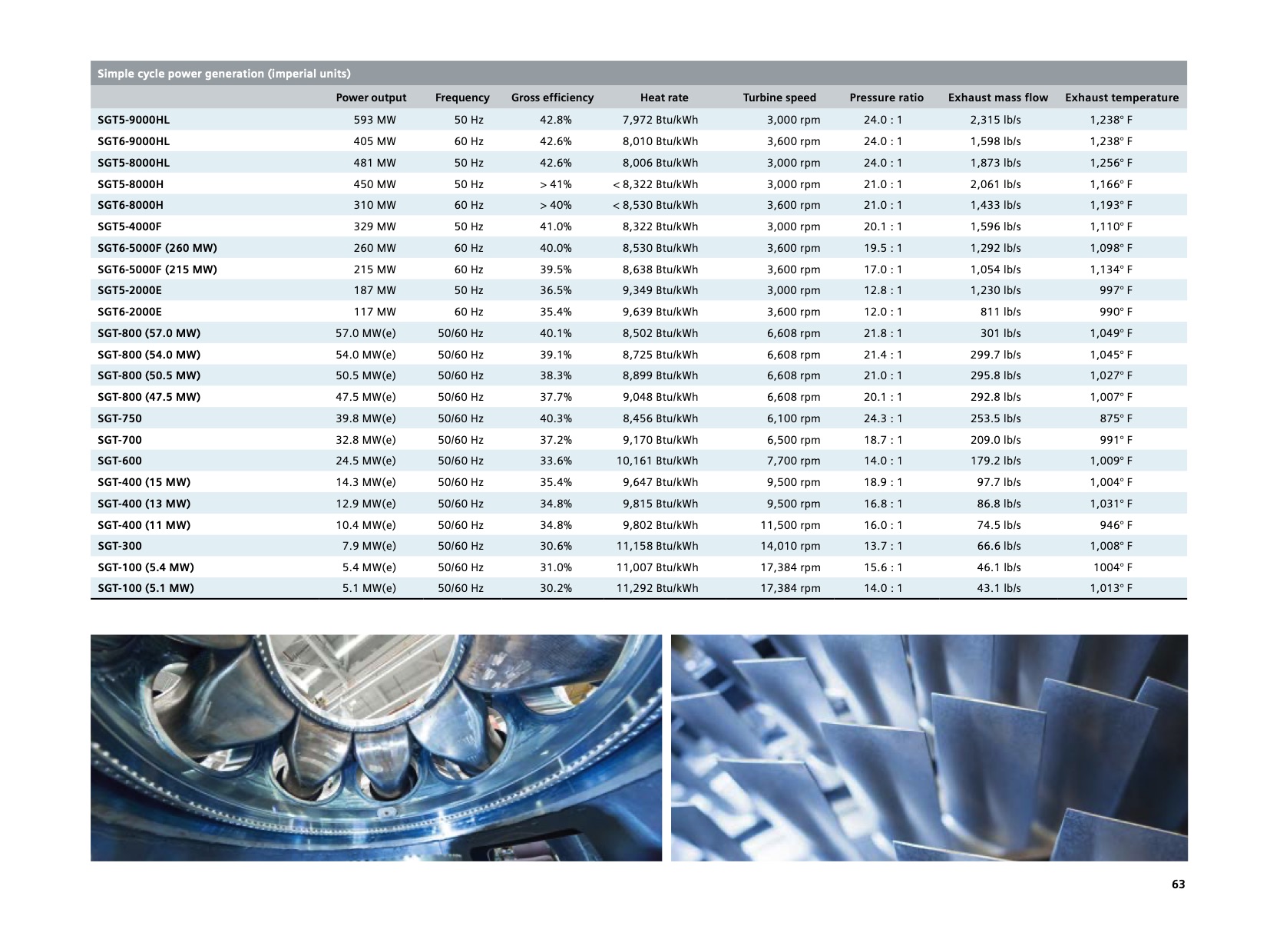

Page | 065 Simple cycle power generation (imperial units)
Power output Frequency Gross efficiency Heat rate Turbine speed Pressure ratio Exhaust mass flow Exhaust temperature
SGT5-9000HL 593 MW 50 Hz 42.8% 7,972 Btu/kWh 3,000 rpm 24.0 : 1 2,315 lb/s 1,238° F
SGT6-9000HL 405 MW 60 Hz 42.6% 8,010 Btu/kWh 3,600 rpm 24.0 : 1 1,598 lb/s 1,238° F
SGT5-8000HL 481 MW 50 Hz 42.6% 8,006 Btu/kWh 3,000 rpm 24.0 : 1 1,873 lb/s 1,256° F
SGT5-8000H 450 MW 50 Hz > 41% < 8,322 Btu/kWh 3,000 rpm 21.0 : 1 2,061 lb/s 1,166° F
SGT6-8000H 310 MW 60 Hz > 40% < 8,530 Btu/kWh 3,600 rpm 21.0 : 1 1,433 lb/s 1,193° F
SGT5-4000F 329 MW 50 Hz 41.0% 8,322 Btu/kWh 3,000 rpm 20.1 : 1 1,596 lb/s 1,110° F
SGT6-5000F (260 MW) 260 MW 60 Hz 40.0% 8,530 Btu/kWh 3,600 rpm 19.5 : 1 1,292 lb/s 1,098° F
SGT6-5000F (215 MW) 215 MW 60 Hz 39.5% 8,638 Btu/kWh 3,600 rpm 17.0 : 1 1,054 lb/s 1,134° F
SGT5-2000E 187 MW 50 Hz 36.5% 9,349 Btu/kWh 3,000 rpm 12.8 : 1 1,230 lb/s 997° F
SGT6-2000E 117 MW 60 Hz 35.4% 9,639 Btu/kWh 3,600 rpm 12.0 : 1 811 lb/s 990° F
SGT-800 (57.0 MW) 57.0 MW(e) 50/60 Hz 40.1% 8,502 Btu/kWh 6,608 rpm 21.8 : 1 301 lb/s 1,049° F
SGT-800 (54.0 MW) 54.0 MW(e) 50/60 Hz 39.1% 8,725 Btu/kWh 6,608 rpm 21.4 : 1 299.7 lb/s 1,045° F
SGT-800 (50.5 MW) 50.5 MW(e) 50/60 Hz 38.3% 8,899 Btu/kWh 6,608 rpm 21.0 : 1 295.8 lb/s 1,027° F
SGT-800 (47.5 MW) 47.5 MW(e) 50/60 Hz 37.7% 9,048 Btu/kWh 6,608 rpm 20.1 : 1 292.8 lb/s 1,007° F
SGT-750 39.8 MW(e) 50/60 Hz 40.3% 8,456 Btu/kWh 6,100 rpm 24.3 : 1 253.5 lb/s 875° F
SGT-700 32.8 MW(e) 50/60 Hz 37.2% 9,170 Btu/kWh 6,500 rpm 18.7 : 1 209.0 lb/s 991° F
SGT-600 24.5 MW(e) 50/60 Hz 33.6% 10,161 Btu/kWh 7,700 rpm 14.0 : 1 179.2 lb/s 1,009° F
SGT-400 (15 MW) 14.3 MW(e) 50/60 Hz 35.4% 9,647 Btu/kWh 9,500 rpm 18.9 : 1 97.7 lb/s 1,004° F
SGT-400 (13 MW) 12.9 MW(e) 50/60 Hz 34.8% 9,815 Btu/kWh 9,500 rpm 16.8 : 1 86.8 lb/s 1,031° F
SGT-400 (11 MW) 10.4 MW(e) 50/60 Hz 34.8% 9,802 Btu/kWh 11,500 rpm 16.0 : 1 74.5 lb/s 946° F
SGT-300 7.9 MW(e) 50/60 Hz 30.6% 11,158 Btu/kWh 14,010 rpm 13.7 : 1 66.6 lb/s 1,008° F
SGT-100 (5.4 MW) 5.4 MW(e) 50/60 Hz 31.0% 11,007 Btu/kWh 17,384 rpm 15.6 : 1 46.1 lb/s 1004° F
SGT-100 (5.1 MW) 5.1 MW(e) 50/60 Hz 30.2% 11,292 Btu/kWh 17,384 rpm 14.0 : 1 43.1 lb/s 1,013° F
63 |
