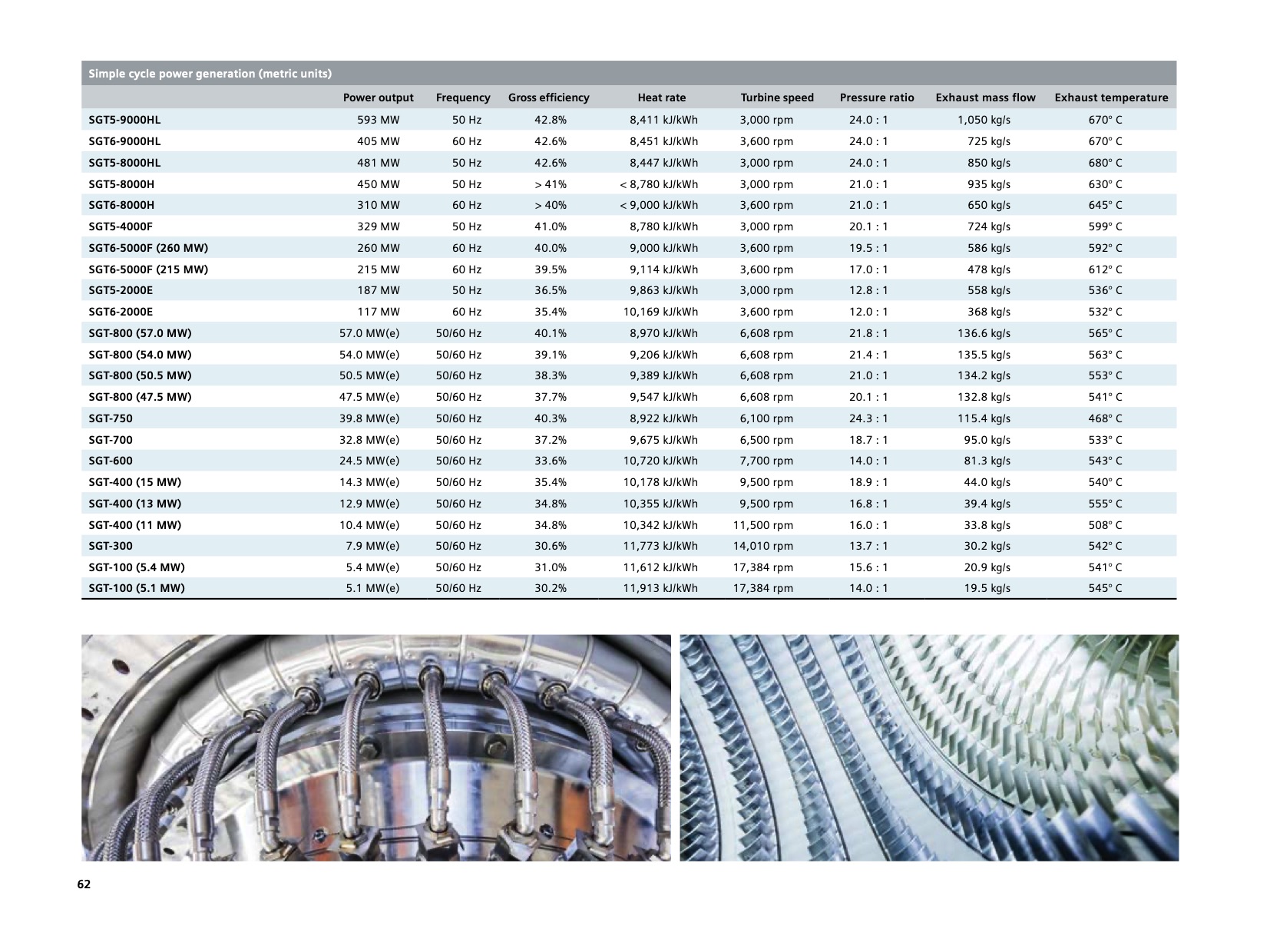

Page | 064 Simple cycle power generation (metric units)
Power output Frequency Gross efficiency Heat rate Turbine speed Pressure ratio Exhaust mass flow Exhaust temperature
SGT5-9000HL 593 MW 50 Hz 42.8% 8,411 kJ/kWh 3,000 rpm 24.0 : 1 1,050 kg/s 670° C
SGT6-9000HL 405 MW 60 Hz 42.6% 8,451 kJ/kWh 3,600 rpm 24.0 : 1 725 kg/s 670° C
SGT5-8000HL 481 MW 50 Hz 42.6% 8,447 kJ/kWh 3,000 rpm 24.0 : 1 850 kg/s 680° C
SGT5-8000H 450 MW 50 Hz > 41% < 8,780 kJ/kWh 3,000 rpm 21.0 : 1 935 kg/s 630° C
SGT6-8000H 310 MW 60 Hz > 40% < 9,000 kJ/kWh 3,600 rpm 21.0 : 1 650 kg/s 645° C
SGT5-4000F 329 MW 50 Hz 41.0% 8,780 kJ/kWh 3,000 rpm 20.1 : 1 724 kg/s 599° C
SGT6-5000F (260 MW) 260 MW 60 Hz 40.0% 9,000 kJ/kWh 3,600 rpm 19.5 : 1 586 kg/s 592° C
SGT6-5000F (215 MW) 215 MW 60 Hz 39.5% 9,114 kJ/kWh 3,600 rpm 17.0 : 1 478 kg/s 612° C
SGT5-2000E 187 MW 50 Hz 36.5% 9,863 kJ/kWh 3,000 rpm 12.8 : 1 558 kg/s 536° C
SGT6-2000E 117 MW 60 Hz 35.4% 10,169 kJ/kWh 3,600 rpm 12.0 : 1 368 kg/s 532° C
SGT-800 (57.0 MW) 57.0 MW(e) 50/60 Hz 40.1% 8,970 kJ/kWh 6,608 rpm 21.8 : 1 136.6 kg/s 565° C
SGT-800 (54.0 MW) 54.0 MW(e) 50/60 Hz 39.1% 9,206 kJ/kWh 6,608 rpm 21.4 : 1 135.5 kg/s 563° C
SGT-800 (50.5 MW) 50.5 MW(e) 50/60 Hz 38.3% 9,389 kJ/kWh 6,608 rpm 21.0 : 1 134.2 kg/s 553° C
SGT-800 (47.5 MW) 47.5 MW(e) 50/60 Hz 37.7% 9,547 kJ/kWh 6,608 rpm 20.1 : 1 132.8 kg/s 541° C
SGT-750 39.8 MW(e) 50/60 Hz 40.3% 8,922 kJ/kWh 6,100 rpm 24.3 : 1 115.4 kg/s 468° C
SGT-700 32.8 MW(e) 50/60 Hz 37.2% 9,675 kJ/kWh 6,500 rpm 18.7 : 1 95.0 kg/s 533° C
SGT-600 24.5 MW(e) 50/60 Hz 33.6% 10,720 kJ/kWh 7,700 rpm 14.0 : 1 81.3 kg/s 543° C
SGT-400 (15 MW) 14.3 MW(e) 50/60 Hz 35.4% 10,178 kJ/kWh 9,500 rpm 18.9 : 1 44.0 kg/s 540° C
SGT-400 (13 MW) 12.9 MW(e) 50/60 Hz 34.8% 10,355 kJ/kWh 9,500 rpm 16.8 : 1 39.4 kg/s 555° C
SGT-400 (11 MW) 10.4 MW(e) 50/60 Hz 34.8% 10,342 kJ/kWh 11,500 rpm 16.0 : 1 33.8 kg/s 508° C
SGT-300 7.9 MW(e) 50/60 Hz 30.6% 11,773 kJ/kWh 14,010 rpm 13.7 : 1 30.2 kg/s 542° C
SGT-100 (5.4 MW) 5.4 MW(e) 50/60 Hz 31.0% 11,612 kJ/kWh 17,384 rpm 15.6 : 1 20.9 kg/s 541° C
SGT-100 (5.1 MW) 5.1 MW(e) 50/60 Hz 30.2% 11,913 kJ/kWh 17,384 rpm 14.0 : 1 19.5 kg/s 545° C
62 |
