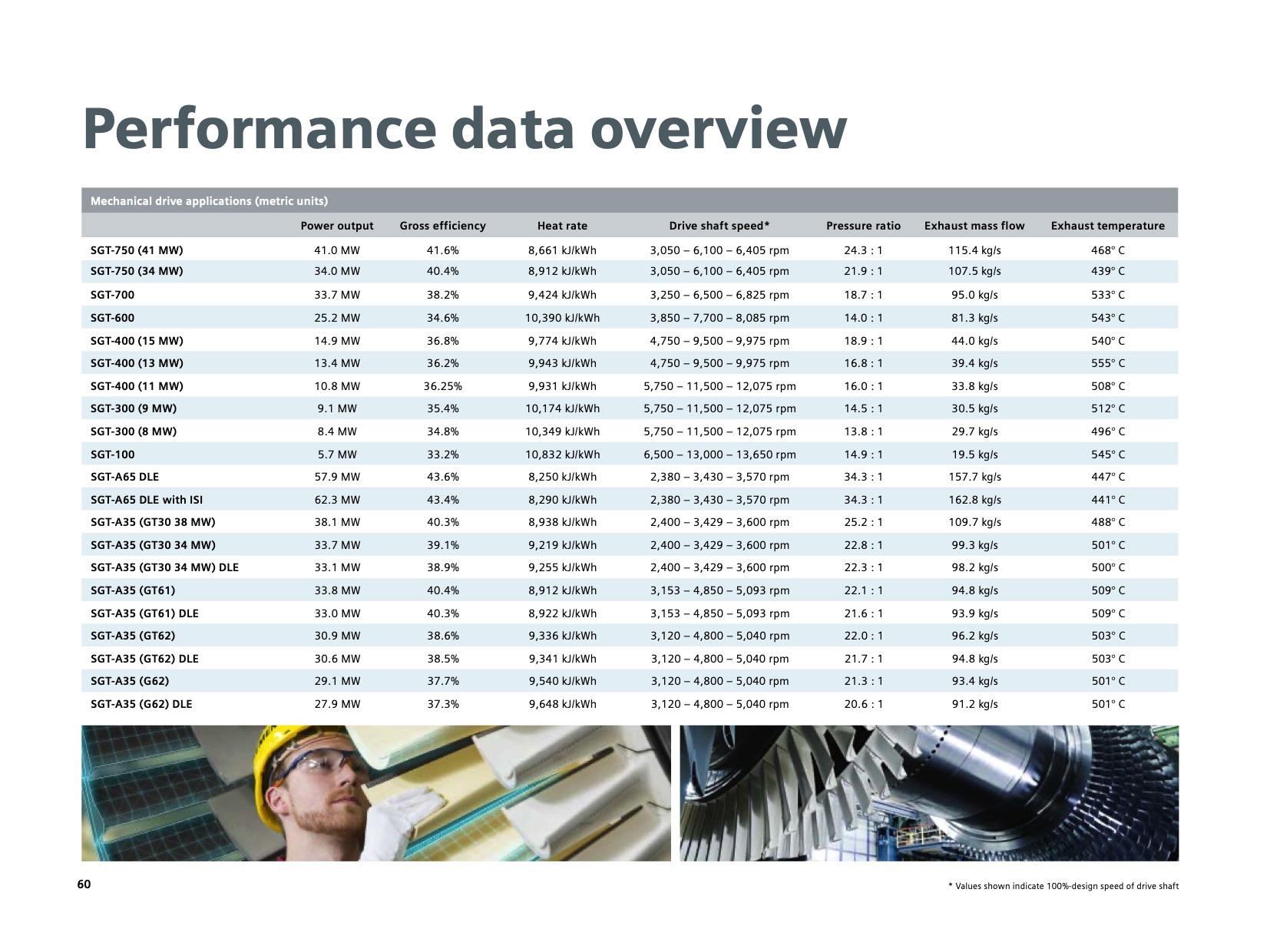

Page | 062 Performance data overview
Mechanical drive applications (metric units)
Power output Gross efficiency Heat rate Drive shaft speed* Pressure ratio Exhaust mass flow Exhaust temperature
SGT-750 (41 MW) 41.0 MW 41.6% 8,661 kJ/kWh 3,050 – 6,100 – 6,405 rpm 24.3 : 1 115.4 kg/s 468° C
SGT-750 (34 MW) 34.0 MW 40.4% 8,912 kJ/kWh 3,050 – 6,100 – 6,405 rpm 21.9 : 1 107.5 kg/s 439° C
SGT-700 33.7 MW 38.2% 9,424 kJ/kWh 3,250 – 6,500 – 6,825 rpm 18.7 : 1 95.0 kg/s 533° C
SGT-600 25.2 MW 34.6% 10,390 kJ/kWh 3,850 – 7,700 – 8,085 rpm 14.0 : 1 81.3 kg/s 543° C
SGT-400 (15 MW) 14.9 MW 36.8% 9,774 kJ/kWh 4,750 – 9,500 – 9,975 rpm 18.9 : 1 44.0 kg/s 540° C
SGT-400 (13 MW) 13.4 MW 36.2% 9,943 kJ/kWh 4,750 – 9,500 – 9,975 rpm 16.8 : 1 39.4 kg/s 555° C
SGT-400 (11 MW) 10.8 MW 36.25% 9,931 kJ/kWh 5,750 – 11,500 – 12,075 rpm 16.0 : 1 33.8 kg/s 508° C
SGT-300 (9 MW) 9.1 MW 35.4% 10,174 kJ/kWh 5,750 – 11,500 – 12,075 rpm 14.5 : 1 30.5 kg/s 512° C
SGT-300 (8 MW) 8.4 MW 34.8% 10,349 kJ/kWh 5,750 – 11,500 – 12,075 rpm 13.8 : 1 29.7 kg/s 496° C
SGT-100 5.7 MW 33.2% 10,832 kJ/kWh 6,500 – 13,000 – 13,650 rpm 14.9 : 1 19.5 kg/s 545° C
SGT-A65 DLE 57.9 MW 43.6% 8,250 kJ/kWh 2,380 – 3,430 – 3,570 rpm 34.3 : 1 157.7 kg/s 447° C
SGT-A65 DLE with ISI 62.3 MW 43.4% 8,290 kJ/kWh 2,380 – 3,430 – 3,570 rpm 34.3 : 1 162.8 kg/s 441° C
SGT-A35 (GT30 38 MW) 38.1 MW 40.3% 8,938 kJ/kWh 2,400 – 3,429 – 3,600 rpm 25.2 : 1 109.7 kg/s 488° C
SGT-A35 (GT30 34 MW) 33.7 MW 39.1% 9,219 kJ/kWh 2,400 – 3,429 – 3,600 rpm 22.8 : 1 99.3 kg/s 501° C
SGT-A35 (GT30 34 MW) DLE 33.1 MW 38.9% 9,255 kJ/kWh 2,400 – 3,429 – 3,600 rpm 22.3 : 1 98.2 kg/s 500° C
SGT-A35 (GT61) 33.8 MW 40.4% 8,912 kJ/kWh 3,153 – 4,850 – 5,093 rpm 22.1 : 1 94.8 kg/s 509° C
SGT-A35 (GT61) DLE 33.0 MW 40.3% 8,922 kJ/kWh 3,153 – 4,850 – 5,093 rpm 21.6 : 1 93.9 kg/s 509° C
SGT-A35 (GT62) 30.9 MW 38.6% 9,336 kJ/kWh 3,120 – 4,800 – 5,040 rpm 22.0 : 1 96.2 kg/s 503° C
SGT-A35 (GT62) DLE 30.6 MW 38.5% 9,341 kJ/kWh 3,120 – 4,800 – 5,040 rpm 21.7 : 1 94.8 kg/s 503° C
SGT-A35 (G62) 29.1 MW 37.7% 9,540 kJ/kWh 3,120 – 4,800 – 5,040 rpm 21.3 : 1 93.4 kg/s 501° C
SGT-A35 (G62) DLE 27.9 MW 37.3% 9,648 kJ/kWh 3,120 – 4,800 – 5,040 rpm 20.6 : 1 91.2 kg/s 501° C
60
* Values shown indicate 100%-design speed of drive shaft |
