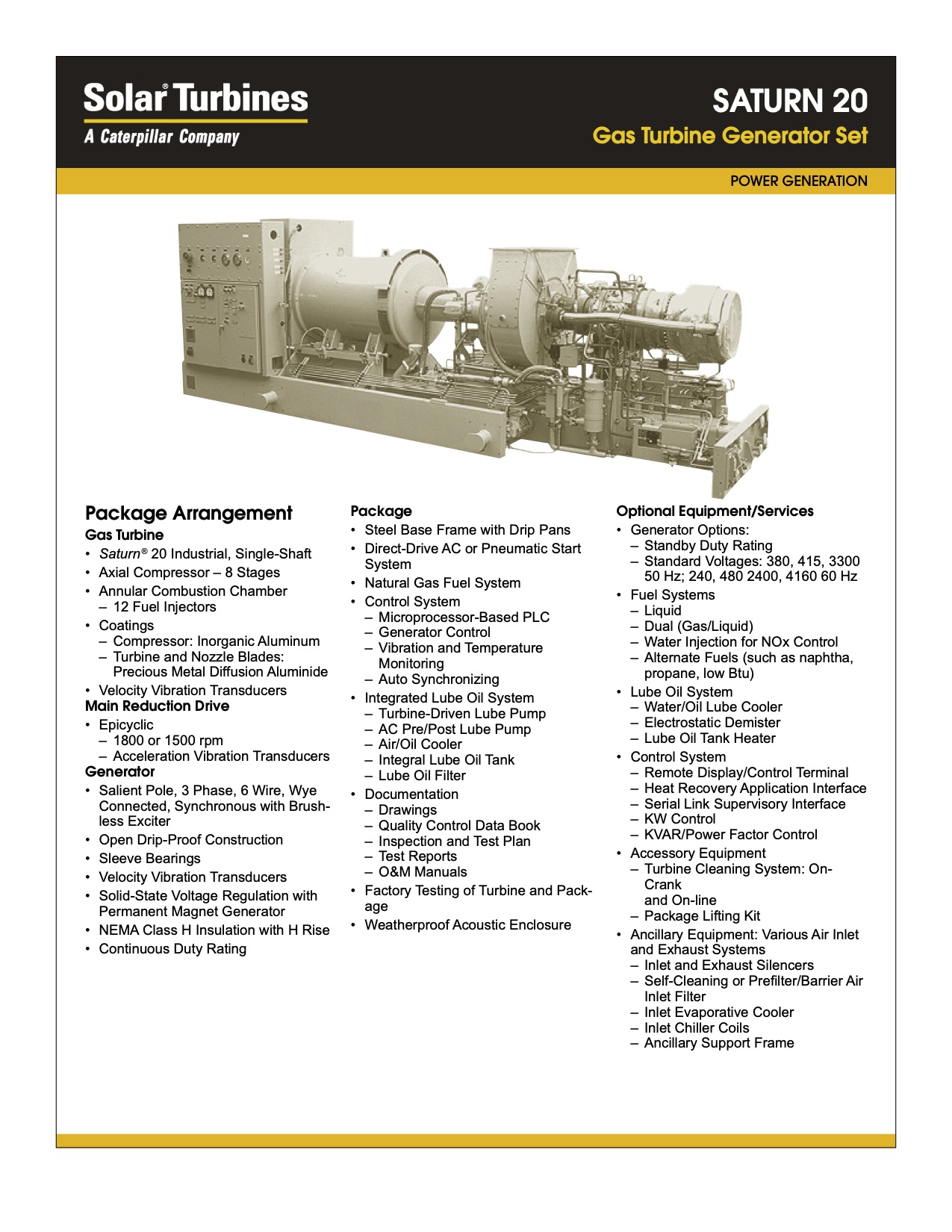

Page | 001 Package Arrangement
Gas Turbine
• Saturn® 20 Industrial, Single-Shaft
• Axial Compressor – 8 Stages
• Annular Combustion Chamber
– 12 Fuel Injectors
• Coatings
– Compressor: Inorganic Aluminum
– Turbine and Nozzle Blades:
Precious Metal Diffusion Aluminide
• Velocity Vibration Transducers
Main Reduction Drive
• Epicyclic
– 1800 or 1500 rpm
– Acceleration Vibration Transducers
Generator
• Salient Pole, 3 Phase, 6 Wire, Wye
Connected, Synchronous with Brush-
less Exciter
• Open Drip-Proof Construction
• Sleeve Bearings
• Velocity Vibration Transducers
• Solid-State Voltage Regulation with
Permanent Magnet Generator
• NEMA Class H Insulation with H Rise
• Continuous Duty Rating
SATURN 20
Gas Turbine Generator Set
POWER GENERATION
Package
• Steel Base Frame with Drip Pans
• Direct-Drive AC or Pneumatic Start
System
• Natural Gas Fuel System
• Control System
– Microprocessor-Based PLC
– Generator Control
– Vibration and Temperature
Monitoring
– Auto Synchronizing
• Integrated Lube Oil System
– Turbine-Driven Lube Pump
– AC Pre/Post Lube Pump
– Air/Oil Cooler
– Integral Lube Oil Tank
– Lube Oil Filter
• Documentation
– Drawings
– Quality Control Data Book
– Inspection and Test Plan
– Test Reports
– O&M Manuals
• Factory Testing of Turbine and Pack-
age
• Weatherproof Acoustic Enclosure
Optional Equipment/Services
• Generator Options:
– Standby Duty Rating
– Standard Voltages: 380, 415, 3300
50 Hz; 240, 480 2400, 4160 60 Hz
• Fuel Systems
– Liquid
– Dual (Gas/Liquid)
– Water Injection for NOx Control
– Alternate Fuels (such as naphtha,
propane, low Btu)
• Lube Oil System
– Water/Oil Lube Cooler
– Electrostatic Demister
– Lube Oil Tank Heater
• Control System
– Remote Display/Control Terminal
– Heat Recovery Application Interface
– Serial Link Supervisory Interface
– KW Control
– KVAR/Power Factor Control
• Accessory Equipment
– Turbine Cleaning System: On-
Crank
and On-line
– Package Lifting Kit
• Ancillary Equipment: Various Air Inlet
and Exhaust Systems
– Inlet and Exhaust Silencers
– Self-Cleaning or Prefilter/Barrier Air
Inlet Filter
– Inlet Evaporative Cooler
– Inlet Chiller Coils
– Ancillary Support Frame |
