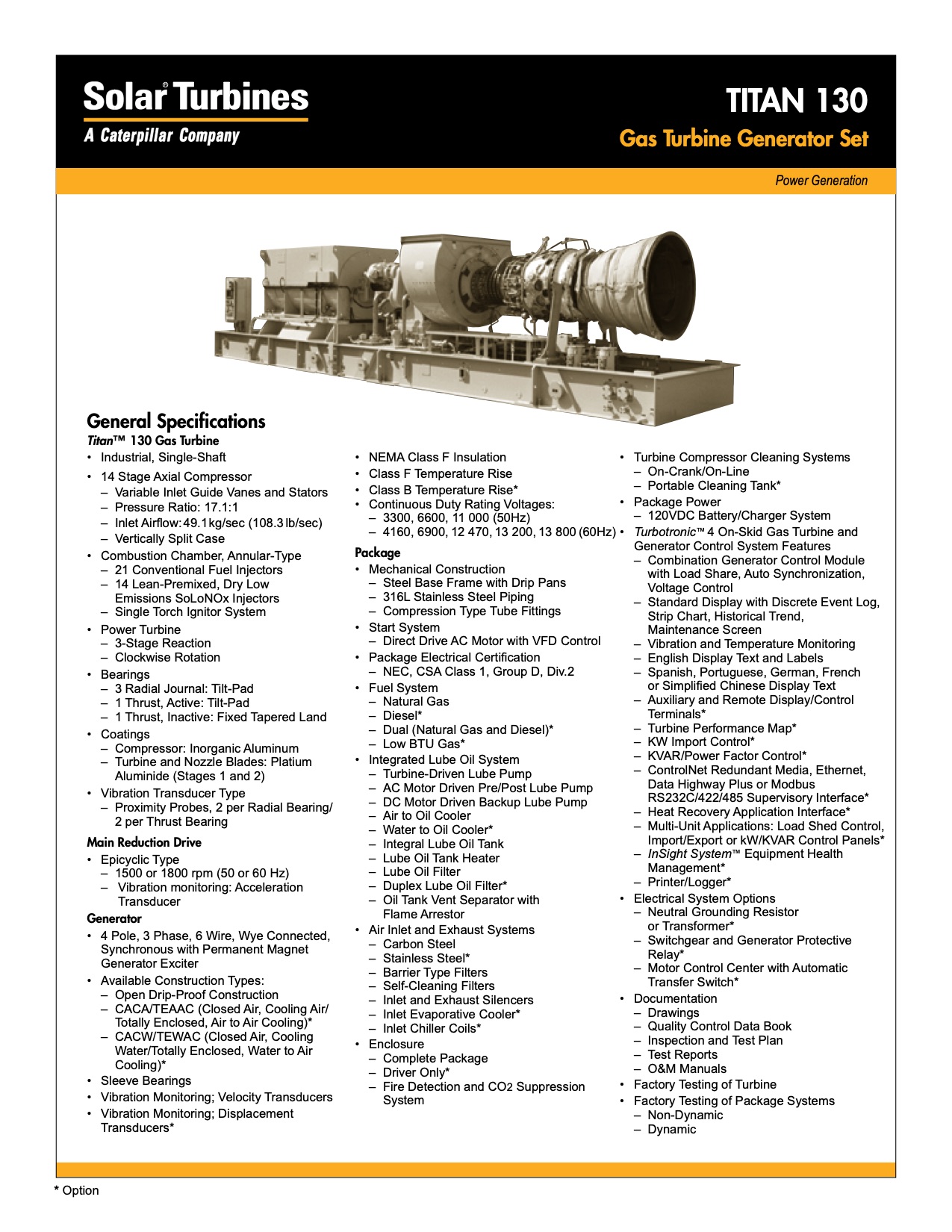

General Specifications Titan 130 Gas Turbine

Page | 001

General Specifications
Titan™ 130 Gas Turbine
• Industrial, Single-Shaft
• 14 Stage Axial Compressor
– Variable Inlet Guide Vanes and Stators
– Pressure Ratio: 17.1:1
– Inlet Airflow: 49.1 kg/sec (108.3 lb/sec)
– Vertically Split Case
• Combustion Chamber, Annular-Type
– 21 Conventional Fuel Injectors
– 14 Lean-Premixed, Dry Low
Emissions SoLoNOx Injectors
– Single Torch Ignitor System
• Power Turbine
– 3-Stage Reaction
– Clockwise Rotation
• Bearings
– 3 Radial Journal: Tilt-Pad
– 1 Thrust, Active: Tilt-Pad
– 1 Thrust, Inactive: Fixed Tapered Land
• Coatings
– Compressor: Inorganic Aluminum
– Turbine and Nozzle Blades: Platium
Aluminide (Stages 1 and 2)
• Vibration Transducer Type
– Proximity Probes, 2 per Radial Bearing/
2 per Thrust Bearing
Main Reduction Drive
• Epicyclic Type
– 1500 or 1800 rpm (50 or 60 Hz)
– Vibration monitoring: Acceleration
Transducer
Generator
•
4 Pole, 3 Phase, 6 Wire, Wye Connected,
Synchronous with Permanent Magnet
Generator Exciter
• Available Construction Types:
– Open Drip-Proof Construction
– CACA/TEAAC (Closed Air, Cooling Air/
Totally Enclosed, Air to Air Cooling)*
– CACW/TEWAC (Closed Air, Cooling
Water/Totally Enclosed, Water to Air
Cooling)*
• Sleeve Bearings
• Vibration Monitoring; Velocity Transducers
• Vibration Monitoring; Displacement
Transducers*
* Option
TITAN 130
Gas Turbine Generator Set
Power Generation
• NEMA Class F Insulation
• Class F Temperature Rise
• Class B Temperature Rise*
• Continuous Duty Rating Voltages:
– 3300, 6600, 11 000 (50Hz)
– 4160, 6900, 12 470, 13 200, 13 800 (60Hz)
Package
• Mechanical Construction
– Steel Base Frame with Drip Pans
– 316L Stainless Steel Piping
– Compression Type Tube Fittings
• Start System
– Direct Drive AC Motor with VFD Control
• Package Electrical Certification
– NEC, CSA Class 1, Group D, Div.2
• Fuel System
– Natural Gas
– Diesel*
– Dual (Natural Gas and Diesel)*
– Low BTU Gas*
• Integrated Lube Oil System
– Turbine-Driven Lube Pump
– AC Motor Driven Pre/Post Lube Pump
– DC Motor Driven Backup Lube Pump
– Air to Oil Cooler
– Water to Oil Cooler*
– Integral Lube Oil Tank
– Lube Oil Tank Heater
– Lube Oil Filter
– Duplex Lube Oil Filter*
– Oil Tank Vent Separator with
Flame Arrestor
• Air Inlet and Exhaust Systems
– Carbon Steel
– Stainless Steel*
– Barrier Type Filters
– Self-Cleaning Filters
– Inlet and Exhaust Silencers
– Inlet Evaporative Cooler*
– Inlet Chiller Coils*
• Enclosure
– Complete Package
– Driver Only*
– Fire Detection and CO2 Suppression
System
• Turbine Compressor Cleaning Systems
– On-Crank/On-Line
– Portable Cleaning Tank*
• Package Power
– 120VDC Battery/Charger System
• Turbotronic™
4 On-Skid Gas Turbine and
Generator Control System Features
– Combination Generator Control Module
with Load Share, Auto Synchronization,
Voltage Control
– Standard Display with Discrete Event Log,
Strip Chart, Historical Trend,
Maintenance Screen
– Vibration and Temperature Monitoring
– English Display Text and Labels
– Spanish, Portuguese, German, French
or Simplified Chinese Display Text
– Auxiliary and Remote Display/Control
Terminals*
– Turbine Performance Map*
– KW Import Control*
– KVAR/Power Factor Control*
– ControlNet Redundant Media, Ethernet,
Data Highway Plus or Modbus
RS232C/422/485 Supervisory Interface*
– Heat Recovery Application Interface*
– Multi-Unit Applications: Load Shed Control,
Import/Export or kW/KVAR Control Panels*
– InSight System™
Equipment Health
Management*
– Printer/Logger*
• Electrical System Options
– Neutral Grounding Resistor
or Transformer*
– Switchgear and Generator Protective
Relay*
– Motor Control Center with Automatic
Transfer Switch*
• Documentation
– Drawings
– Quality Control Data Book
– Inspection and Test Plan
– Test Reports
– O&M Manuals
• Factory Testing of Turbine
• Factory Testing of Package Systems
– Non-Dynamic
– Dynamic
