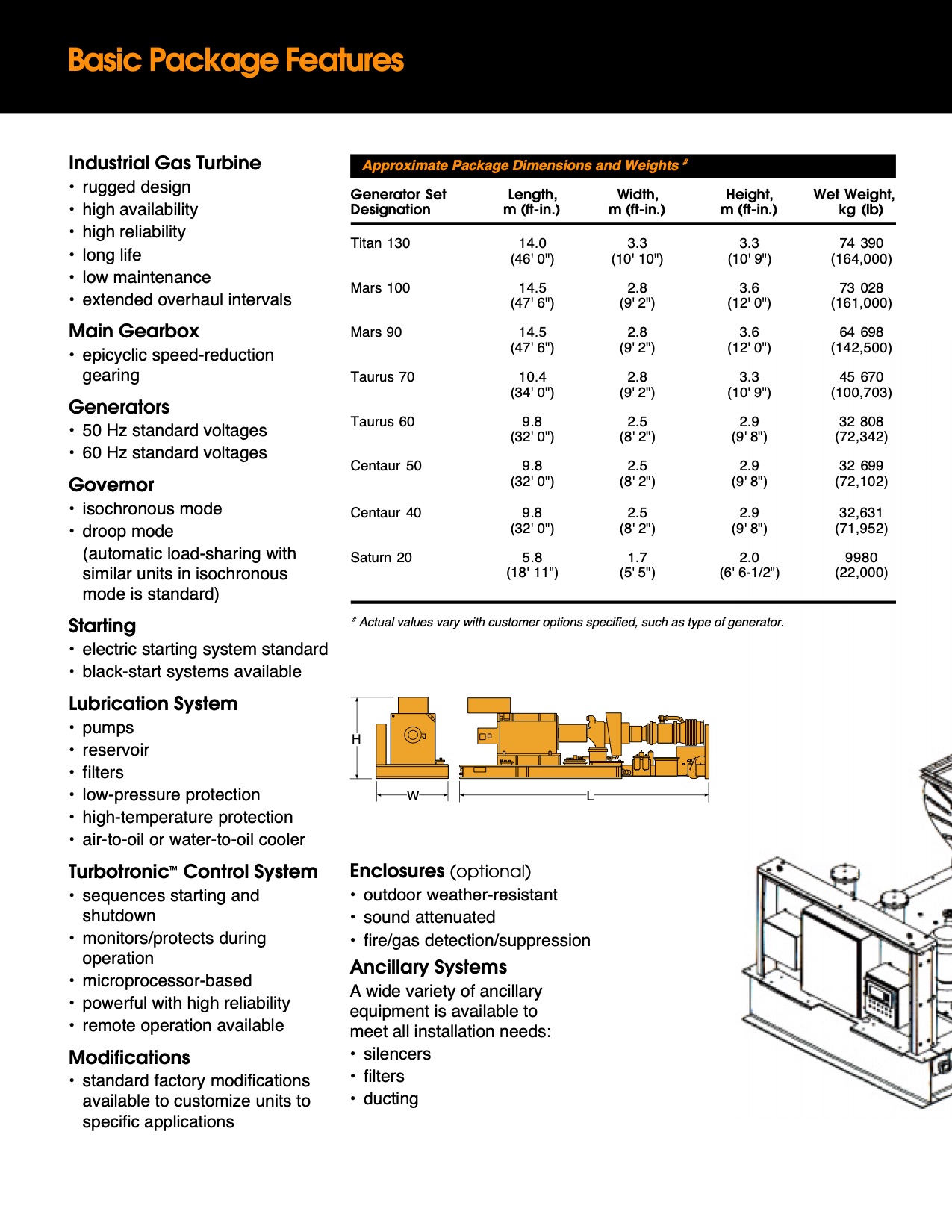

Page | 008 Basic Package Features
Industrial Gas Turbine
• rugged design
• high availability
• high reliability
• long life
• low maintenance
• extended overhaul intervals
Main Gearbox
• epicyclic speed-reduction
gearing
Generators
• 50 Hz standard voltages
• 60 Hz standard voltages
Governor
• isochronous mode
• droop mode
(automatic load-sharing with
similar units in isochronous
mode is standard)
Starting
• electric starting system standard
• black-start systems available
Lubrication System
• pumps
• reservoir
• filters
• low-pressure protection
• high-temperature protection
• air-to-oil or water-to-oil cooler
Turbotronic™ Control System
• sequences starting and
shutdown
• monitors/protects during
operation
• microprocessor-based
• powerful with high reliability
• remote operation available
Modifications
• standard factory modifications
available to customize units to
specific applications
Approximate Package Dimensions and Weights #
Generator Set Length, Width, Height, Wet Weight,
Designation m (ft-in.) m (ft-in.) m (ft-in.) kg (lb)
Titan 130 14.0 3.3 3.3 74 390
(46' 0") (10' 10") (10' 9") (164,000)
Mars 100 14.5 2.8 3.6 73 028
(47' 6") (9' 2") (12' 0") (161,000)
Mars 90 14.5 2.8 3.6 64 698
(47' 6") (9' 2") (12' 0") (142,500)
Taurus 70 10.4 2.8 3.3 45 670
(34' 0") (9' 2") (10' 9") (100,703)
Taurus 60 9.8 2.5 2.9 32 808
(32' 0") (8' 2") (9' 8") (72,342)
Centaur 50 9.8 2.5 2.9 32 699
(32' 0") (8' 2") (9' 8") (72,102)
Centaur 40 9.8 2.5 2.9 32,631
(32' 0") (8' 2") (9' 8") (71,952)
Saturn 20 5.8 1.7 2.0 9980
(18' 11") (5' 5") (6' 6-1/2") (22,000)
# Actual values vary with customer options specified, such as type of generator.
H
W L
Enclosures (optional)
• outdoor weather-resistant
• sound attenuated
• fire/gas detection/suppression
Ancillary Systems
A wide variety of ancillary
equipment is available to
meet all installation needs:
• silencers
• filters
• ducting |
