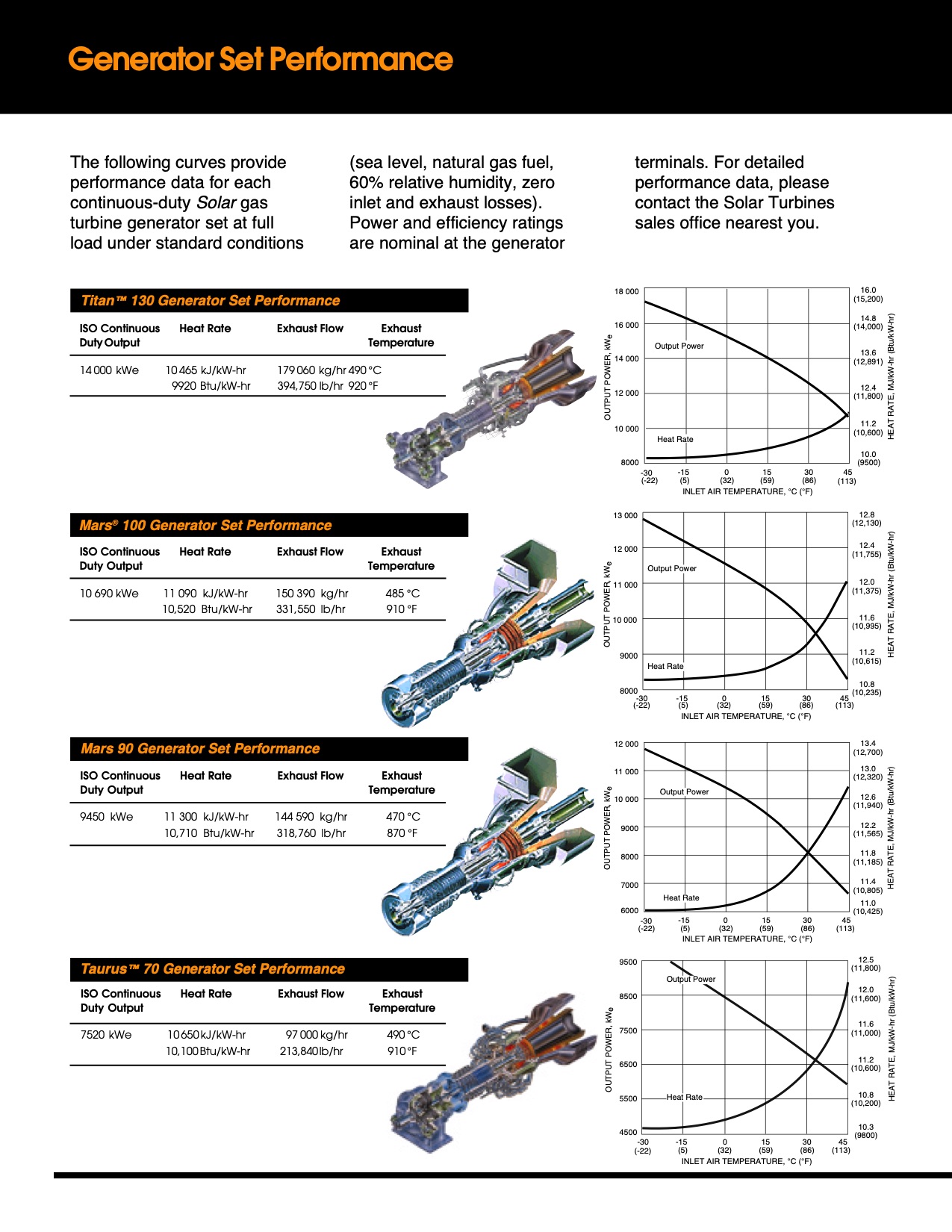

Generator Set Performance
The following curves provide
performance data for each
continuous-duty Solar gas
turbine generator set at full
load under standard conditions
(sea level, natural gas fuel,
60% relative humidity, zero
inlet and exhaust losses).
Power and efficiency ratings
are nominal at the generator
Titan™ 130 Generator Set Performance
ISO Continuous Heat Rate Exhaust Flow Exhaust
Duty Output Temperature
14 000 kWe 10 465 kJ/kW-hr 9920 Btu/kW-hr 179 060 kg/hr 490 °C
394,750 lb/hr 920 °F
Mars® 100 Generator Set Performance
ISO Continuous Heat Rate Exhaust Flow Exhaust
Duty Output Temperature
10 690 kWe 11 090 kJ/kW-hr 150 390 kg/hr 485 °C
10,520 Btu/kW-hr 331,550 lb/hr 910 °F
Mars 90 Generator Set Performance
ISO Continuous Heat Rate Exhaust Flow Exhaust
Duty Output Temperature
9450 kWe 11 300 kJ/kW-hr 144 590 kg/hr 470 °C
10,710 Btu/kW-hr 318,760 lb/hr 870 °F
Taurus™ 70 Generator Set Performance
ISO Continuous Heat Rate Exhaust Flow Exhaust
Duty Output Temperature
7520 kWe 10 650 kJ/kW-hr 97 000 kg/hr 490 °C
10,100 Btu/kW-hr 213,840 lb/hr 910 °F
terminals. For detailed
performance data, please
contact the Solar Turbines
sales office nearest you.
OUTPUT POWER, kWe
Output Power
Heat Rate
-30 -15 0 15 30
(-22) (5) (32) (59) (86)
INLET AIR TEMPERATURE, °C (°F)
OUTPUT POWER, kWe
Output Power
Heat Rate
OUTPUT POWER, kWe
OUTPUT POWER, kWe
18 000
16.0
(15,200)
16 000
14.8
(14,000)
14 000
13.6
(12,891)
12 000
12.4
(11,800)
10 000
11.2
(10,600)
8000
10.0
(9500)
45
(113)
13 000
12.8
(12,130)
12 000
12.4
(11,755)
11 000
12.0
(11,375)
10 000
11.6
(10,995)
9000
11.2
(10,615)
8000
10.8
(10,235)
-30 -15 0 15 30 45
(-22) (5) (32) (59) (86) (113)
INLET AIR TEMPERATURE, °C (°F)
12 000
13.4
(12,700)
11 000
13.0
(12,320)
10 000
12.6
(11,940)
9000
12.2
(11,565)
8000
11.8
(11,185)
7000
11.4
(10,805)
6000
11.0
(10,425)
-30 -15 0 15 30 45
(-22) (5) (32) (59) (86) (113)
INLET AIR TEMPERATURE, °C (°F)
9500
12.5
(11,800)
8500
12.0
(11,600)
7500
11.6
(11,000)
6500
11.2
(10,600)
5500
10.8
(10,200)
4500
10.3
(9800)
-30 -15 0 15 30 45
(-22) (5) (32) (59) (86) (113)
INLET AIR TEMPERATURE, °C (°F)
Output Power
Heat Rate
Output Power
Heat Rate
HEAT RATE, MJ/kW-hr (Btu/kW-hr)
HEAT RATE, MJ/kW-hr (Btu/kW-hr)
HEAT RATE, MJ/kW-hr (Btu/kW-hr)
HEAT RATE, MJ/kW-hr (Btu/kW-hr)
